SKU: UCFCX05-16

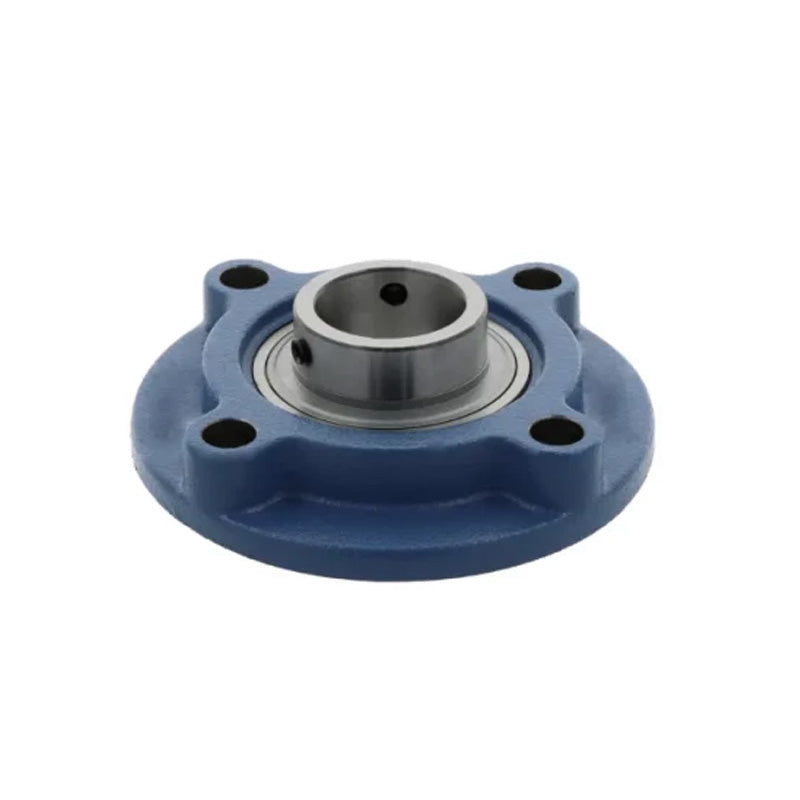

UCFCX05-16 Imperial Four Bolt Cast Iron Round Flanged Housing with 1 inch Insert
- Regular price
- €21.49 ex VAT
- Sale price
- €21,49
- Regular price
-
In stock
Quantity Price Breaks
3
€19.13
4
€18.05
9
€17.84
19
€17.62
49
€17.41
99
€17.19
499
€16.12
999
€15.90
1999
€15.69
2999
€15.47
4999
€15.04
SKU:
UCFCX05-16
UCFCX05-16 Imperial Four Bolt Cast Iron Round Flanged Housing with 1 inch Insert
- Regular price
- €21.49 ex VAT
- Sale price
- €21,49
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1 inch |
| a | = | 4-3/8 inch |
| p | = | 3-5/8 inch |
| (e) | = | 2-9/16 inch |
| i | = | 25/64 inch |
| s | = | 3/8 inch |
| j | = | 15/64 inch |
| k | = | 3/8 inch |
| g | = | 15/16 inch |
| f | = | 2.9921 inch |
| z | = | 1-9/32 inch |
| B | = | 1.5 inch |
| n | = | 0.626 inch |
| Bolt size | = | 5/16 inch |
| Bearing no | = | UCX05-16 |
| Housing no | = | FCX05 |
| Weight | = | 1.1 kg |
