SKU: UCFCX06-20

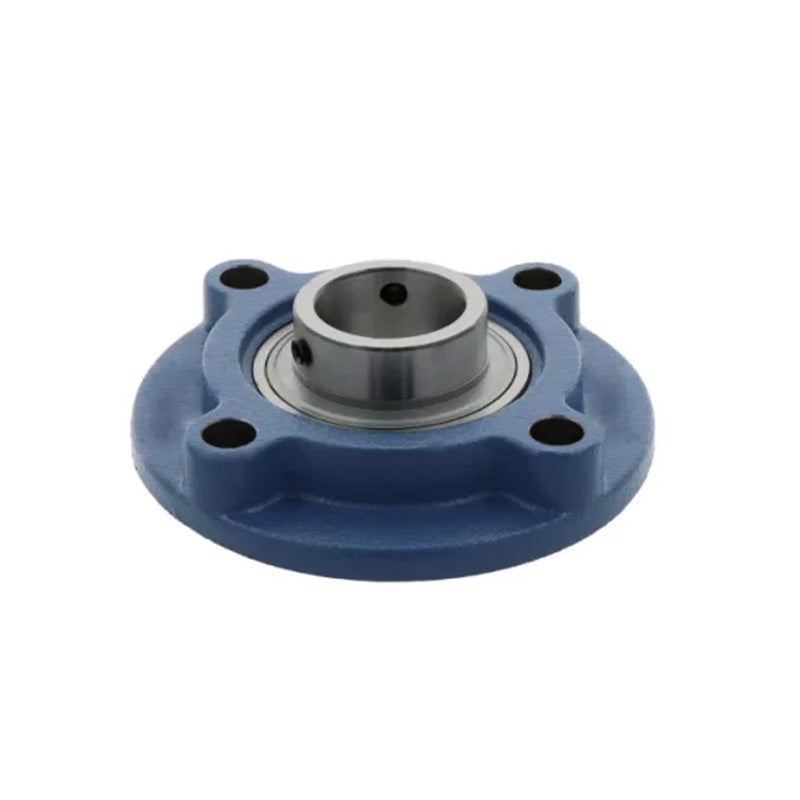

UCFCX06-20 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/4 inch Insert
- Regular price
- €31.11 ex VAT
- Sale price
- €31,11
- Regular price
-
Not in stock
Quantity Price Breaks
3
€27.69
4
€26.13
9
€25.82
19
€25.51
49
€25.20
99
€24.89
499
€23.33
999
€23.02
1999
€22.71
2999
€22.40
4999
€21.78
SKU:
UCFCX06-20
UCFCX06-20 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-1/4 inch Insert
- Regular price
- €31.11 ex VAT
- Sale price
- €31,11
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-1/4 inch |
| a | = | 5 inch |
| p | = | 4-9/64 inch |
| (e) | = | 2-59/64 inch |
| i | = | 5/16 inch |
| s | = | 15/32 inch |
| j | = | 3/8 inch |
| k | = | 3/8 inch |
| g | = | 7/8 inch |
| f | = | 3.3465 inch |
| z | = | 1-5/16 inch |
| B | = | 1.689 inch |
| n | = | 0.689 inch |
| Bolt size | = | 3/8 inch |
| Bearing no | = | UCX06-20 |
| Housing no | = | FCX06 |
| Weight | = | 1.4 kg |
