SKU: UCFCX08
UCFCX08 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
- Regular price
- €35.85 ex VAT
- Sale price
- €35,85
- Regular price
-
In stock
Quantity Price Breaks
3
€31.91
4
€30.11
9
€29.76
19
€29.40
49
€29.04
99
€28.68
499
€26.89
999
€26.53
1999
€26.17
2999
€25.81
4999
€25.10
SKU:
UCFCX08

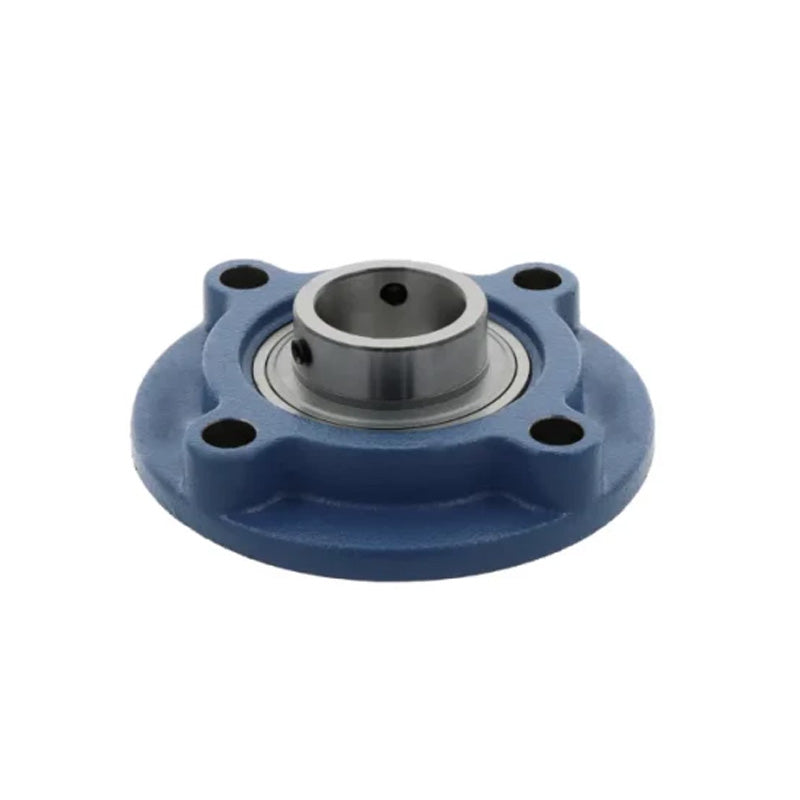

UCFCX08 Metric Four Bolt Cast Iron Round Flanged Housing with 40mm Insert
- Regular price
- €35.85 ex VAT
- Sale price
- €35,85
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 40mm |
| a | = | 133mm |
| p | = | 111mm |
| (e) | = | 78.5mm |
| i | = | 9mm |
| s | = | 12mm |
| j | = | 11mm |
| k | = | 11mm |
| g | = | 26mm |
| f | = | 92mm |
| z | = | 39.2mm |
| B | = | 49.2mm |
| n | = | 19mm |
| Bolt size | = | M14 |
| Bearing no | = | UCX08 |
| Housing no | = | FCX08 |
| Weight | = | 1.8 kg |
