SKU: UCFCX09-27

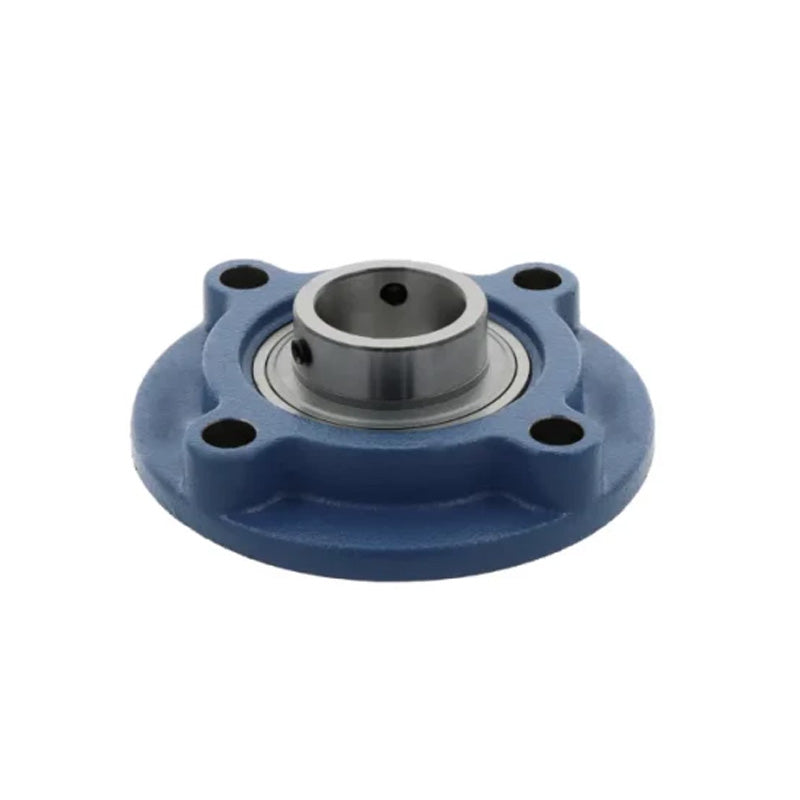

UCFCX09-27 Imperial Four Bolt Cast Iron Round Flanged Housing with 1-11/16 inch Insert
- Regular price
- €54.38 ex VAT
- Sale price
- €54,38
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€48.40
4
€45.68
9
€45.14
19
€44.59
49
€44.05
99
€43.50
499
€40.79
999
€40.24
1999
€39.70
2999
€39.15
4999
€38.07
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-11/16 inch |
| a | = | 6-3/32 inch |
| p | = | 5-1/8 inch |
| (e) | = | 3-5/8 inch |
| i | = | 5/16 inch |
| s | = | 35/64 inch |
| j | = | 15/32 inch |
| k | = | 7/16 inch |
| g | = | 63/64 inch |
| f | = | 4.252 inch |
| z | = | 1-19/32 inch |
| B | = | 2.0315 inch |
| n | = | 0.748 inch |
| Bolt size | = | 7/16 inch |
| Bearing no | = | UCX09-27 |
| Housing no | = | FCX09 |
| Weight | = | 2.4 kg |
