SKU: UCFCX10D1-NTN

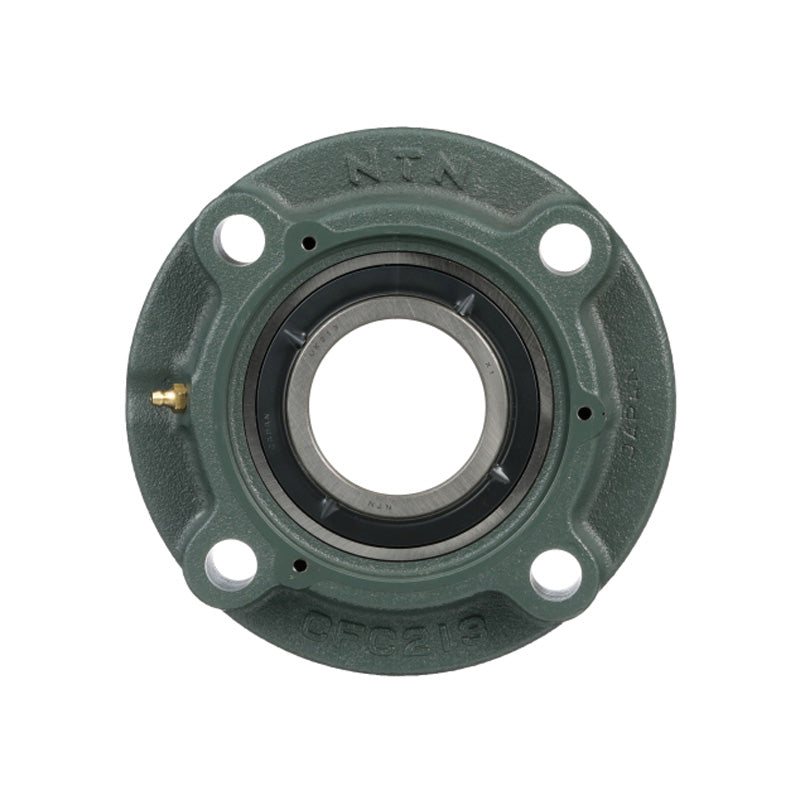

NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Not in stock
Quantity Price Breaks
3
€56.91
4
€53.71
9
€53.07
19
€52.43
49
€51.79
99
€51.15
499
€47.96
999
€47.32
1999
€46.68
2999
€46.04
4999
€44.76
SKU:
UCFCX10D1-NTN
NTN UCFCX10D1 Metric Four Bolt Cast Iron Round Flanged Housing with 50mm Insert - Allow 2-3 Days
- Regular price
- €63.94 ex VAT
- Sale price
- €63,94
- Regular price
-
Description
UCFCX Series Medium Duty 4 Bolt Round Housings: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the round cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| L | = | 162mm |
| J | = | 136mm |
| (J< | = | sub> |
| 1< | = | /sub> |
| ) | = | 96.2mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 7mm | |
| N | = | 14mm |
| A< | = | sub> |
| 3< | = | /sub> |
| = | 16mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 25mm | |
| A | = | 41mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 118mm | |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 56.4mm | |
| B | = | 55.6mm |
| S | = | 22.2mm |
| F (Min.) | = | 75mm |
| Fixing bolt | = | M12 |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 48 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 29.2 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 2.29 kN | |
| --- | = | Unit information |
| Mass | = | 3.1 kg |
