SKU: UCFE208T20-SNR

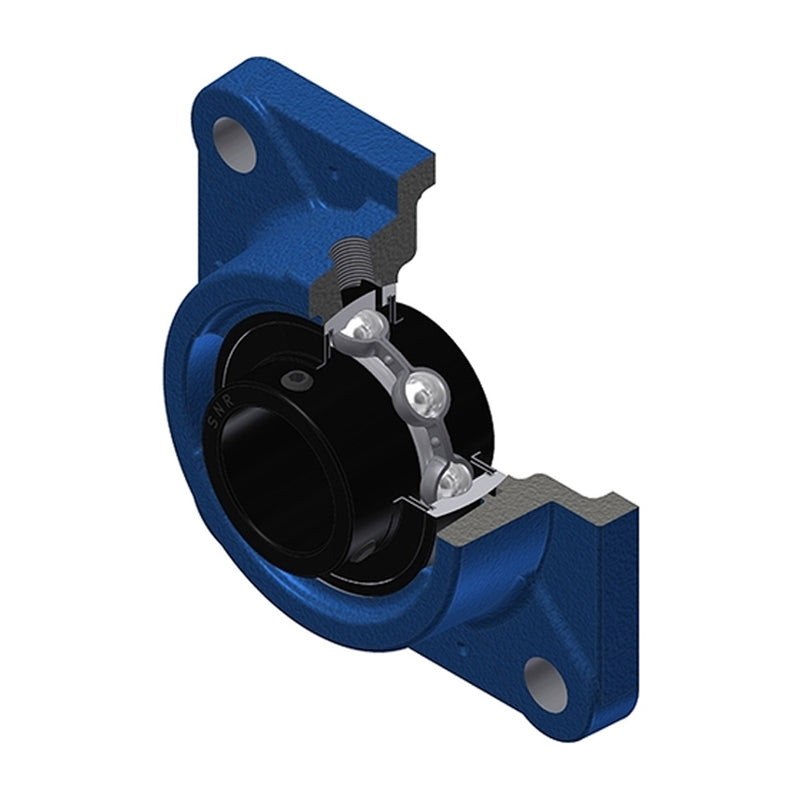

SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-
Not in stock
Quantity Price Breaks
3
€69.36
4
€65.46
9
€64.68
19
€63.90
49
€63.12
99
€62.34
499
€58.45
999
€57.67
1999
€56.89
2999
€56.11
4999
€54.55
SKU:
UCFE208T20-SNR
SNR UCFE208T20 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 39.5mm |
| A1 | = | 13mm |
| A2 | = | 54.2mm |
| B | = | 49.2mm |
| e | = | 24mm |
| J | = | 101.5mm |
| L | = | 130mm |
| N | = | 14mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 200& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.05 kg |
