SKU: UCFE210N-SNR

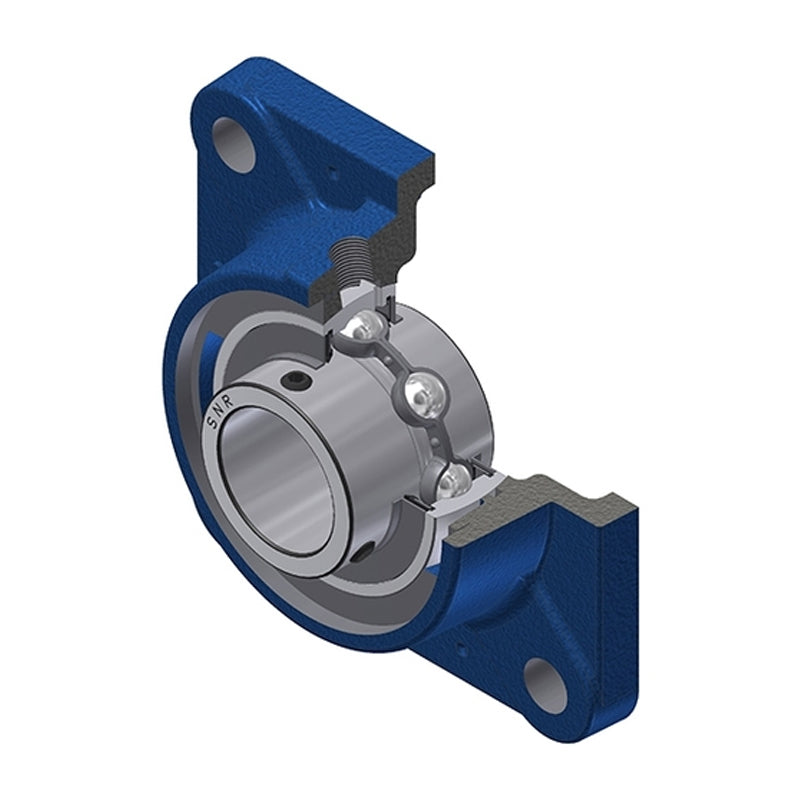

SNR UCFE210N Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.51
4
€45.78
9
€45.24
19
€44.69
49
€44.15
99
€43.60
499
€40.88
999
€40.33
1999
€39.79
2999
€39.24
4999
€38.15
SKU:
UCFE210N-SNR
SNR UCFE210N Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Description
UCFE/UCFEX Series 4 Bolt Cast Iron Square Flange Housing: These cast iron housing units include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 44mm |
| A1 | = | 13mm |
| A2 | = | 60.6mm |
| B | = | 51.6mm |
| e | = | 28mm |
| J | = | 111mm |
| L | = | 143mm |
| N | = | 18mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.53 kg |
