SKU: UCFH207D1-NTN

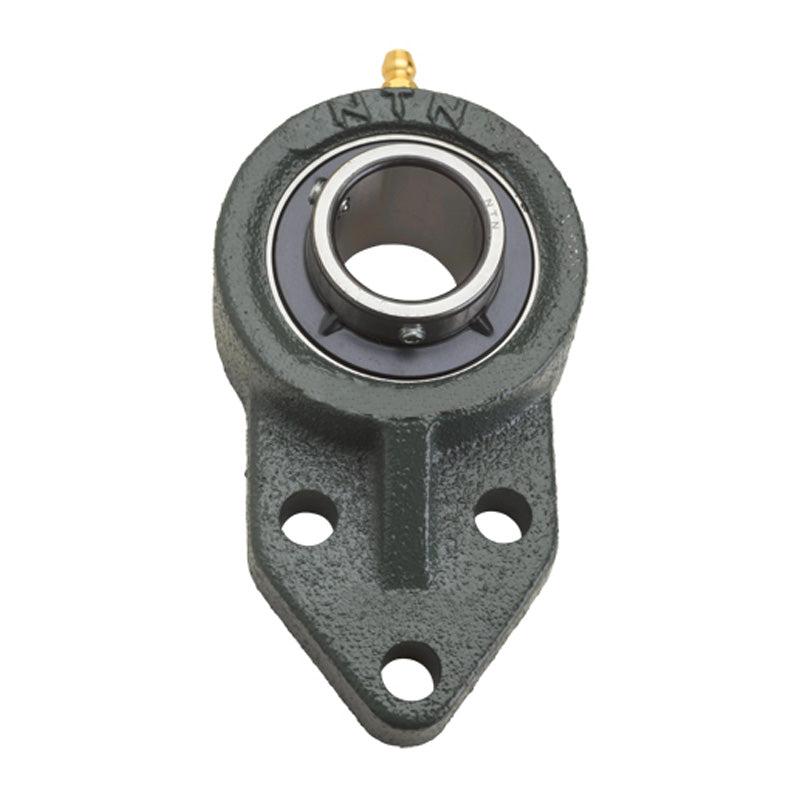

NTN UCFH207D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Not in stock
Quantity Price Breaks
3
€34.82
4
€32.86
9
€32.47
19
€32.08
49
€31.69
99
€31.30
499
€29.34
999
€28.95
1999
€28.56
2999
€28.17
4999
€27.38
SKU:
UCFH207D1-NTN
NTN UCFH207D1 Metric 3 Bolt Cast Iron Bracket Flange Bearing 35mm Bore - Allow 2-3 Days
- Regular price
- €39.12 ex VAT
- Sale price
- €39,12
- Regular price
-
Description
UCFH200 Series 3 Bolt Cast Iron Bracket Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the flange housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| Shaft diameter | = | 35mm |
| H< | = | sub> |
| 3< | = | /sub> |
| = | 144mm | |
| J | = | 46mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 19mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 15mm | |
| A | = | 34mm |
| N | = | 10mm |
| H | = | 55mm |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 32mm | |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 70mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 62mm | |
| L | = | 90mm |
| A< | = | sub> |
| 0< | = | /sub> |
| = | 44.4mm | |
| B | = | 42.9mm |
| S | = | 17.5mm |
| Fixing bolt | = | M8 |
| Mass | = | 1.3 kg |
