SKU: UCFL.209-26

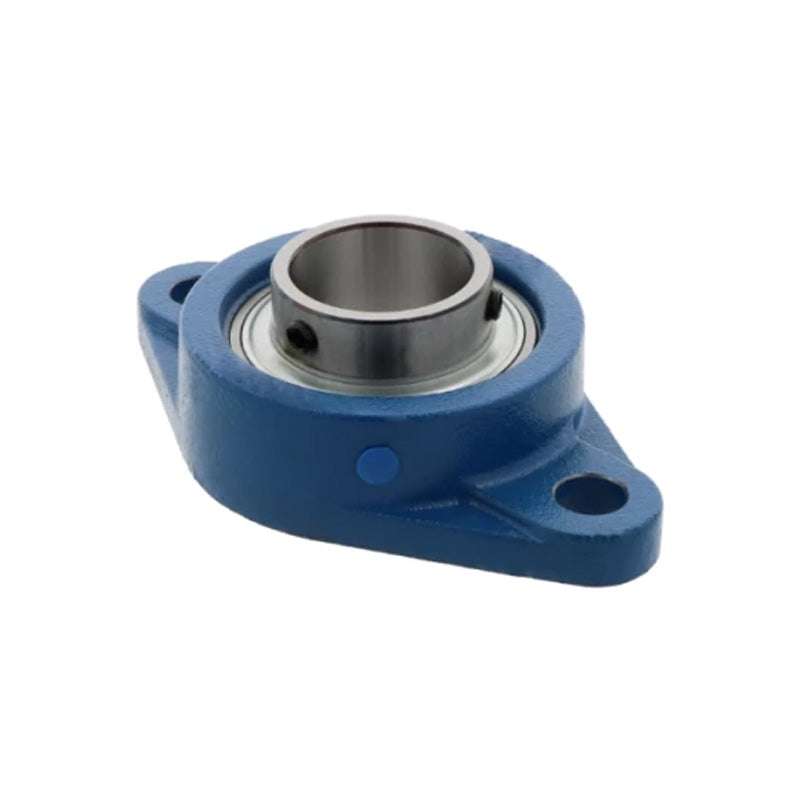

UCFL209-26 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/8 inch Bore Insert
- Regular price
- €28.73 ex VAT
- Sale price
- €28,73
- Regular price
-
In stock
Quantity Price Breaks
3
€25.57
4
€24.13
9
€23.85
19
€23.56
49
€23.27
99
€22.98
499
€21.55
999
€21.26
1999
€20.97
2999
€20.69
4999
€20.11
SKU:
UCFL.209-26
UCFL209-26 Imperial Two Bolt Oval Cast Iron Flange Housing with 1-5/8 inch Bore Insert
- Regular price
- €28.73 ex VAT
- Sale price
- €28,73
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-5/8 inch |
| a | = | 188mm |
| e | = | 148mm |
| i | = | 22mm |
| g | = | 15mm |
| L | = | 38mm |
| S | = | 19mm |
| b | = | 108mm |
| z | = | 52.2mm |
| B1 | = | 49.2mm |
| n | = | 19.0mm |
| Bolt Size | = | M16 |
| Weight | = | 1.9 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
