SKU: UCFL.216

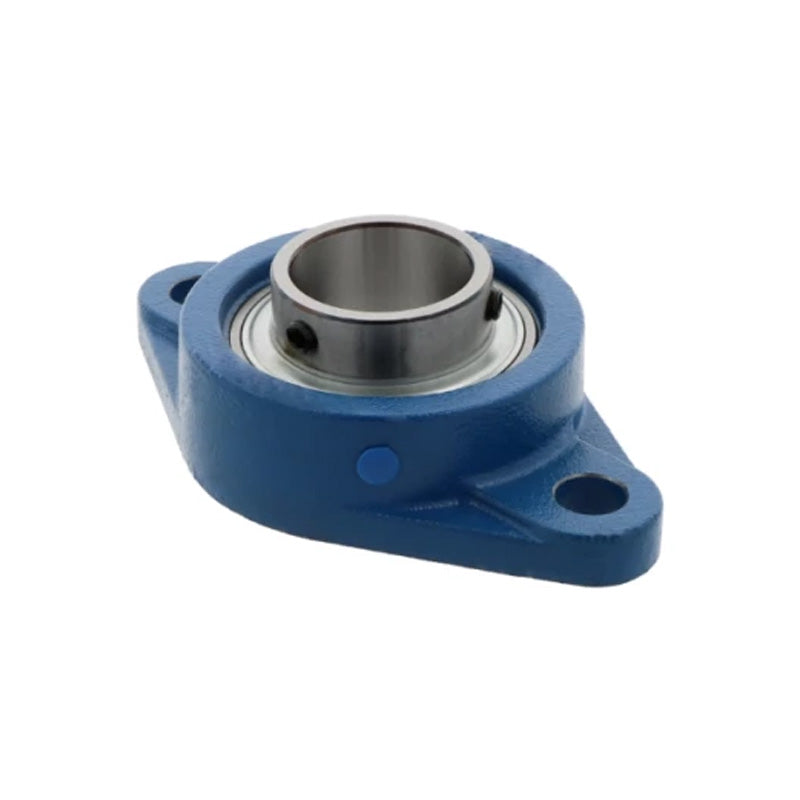

UCFL216 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert
- Regular price
- €153.00 ex VAT
- Sale price
- €153,00
- Regular price
-
In stock
Quantity Price Breaks
3
€136.17
4
€128.52
9
€126.99
19
€125.46
49
€123.93
99
€122.40
499
€114.75
999
€113.22
1999
€111.69
2999
€110.16
4999
€107.10
SKU:
UCFL.216
UCFL216 Metric Two Bolt Oval Cast Iron Flange Housing with 80mm Bore Insert
- Regular price
- €153.00 ex VAT
- Sale price
- €153,00
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 80mm |
| a | = | 290mm |
| e | = | 233mm |
| i | = | 35mm |
| g | = | 20mm |
| L | = | 59mm |
| S | = | 25mm |
| b | = | 180mm |
| z | = | 84.3mm |
| B1 | = | 82.6mm |
| n | = | 33.3mm |
| Bolt Size | = | M22 |
| Weight | = | 7.9 kg |
| Dynamic load | = | 5700 kgf |
| Static load | = | 4550 kgf |
