SKU: UCFL.217

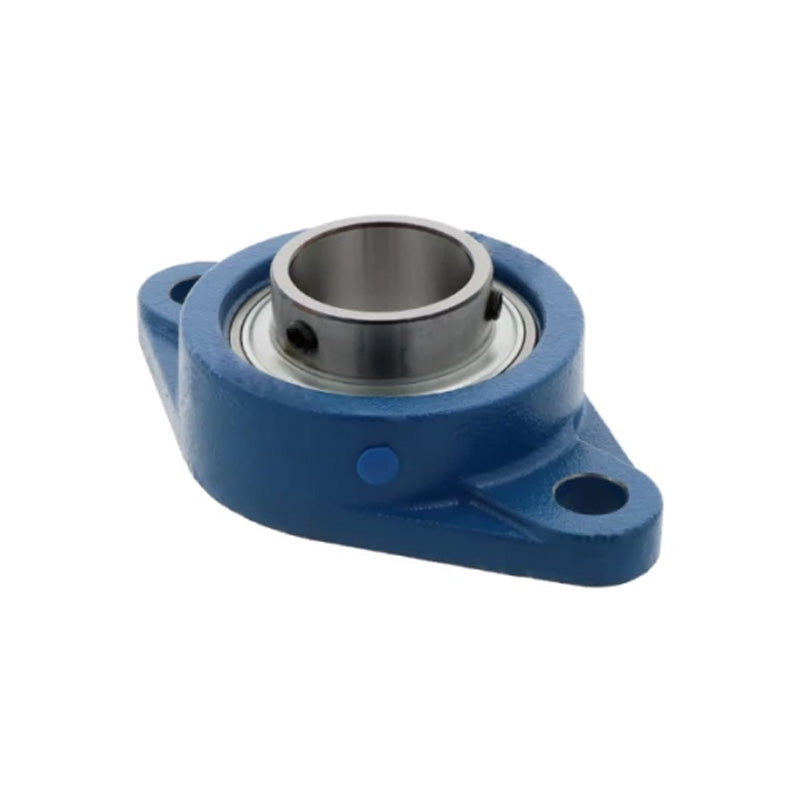

UCFL217 Metric Two Bolt Oval Cast Iron Flange Housing with 85mm Bore Insert
- Regular price
- €200.94 ex VAT
- Sale price
- €200,94
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€178.84
4
€168.79
9
€166.78
19
€164.77
49
€162.76
99
€160.75
499
€150.71
999
€148.70
1999
€146.69
2999
€144.68
4999
€140.66
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 85mm |
| a | = | 305mm |
| e | = | 248mm |
| i | = | 36mm |
| g | = | 22mm |
| L | = | 63mm |
| S | = | 25mm |
| b | = | 190mm |
| z | = | 87.6mm |
| B1 | = | 85.7mm |
| n | = | 34.1mm |
| Bolt Size | = | M22 |
| Weight | = | 9.6 kg |
| Dynamic load | = | 6600 kgf |
| Static load | = | 5320 kgf |
