SKU: UCFL205-16T20-SNR

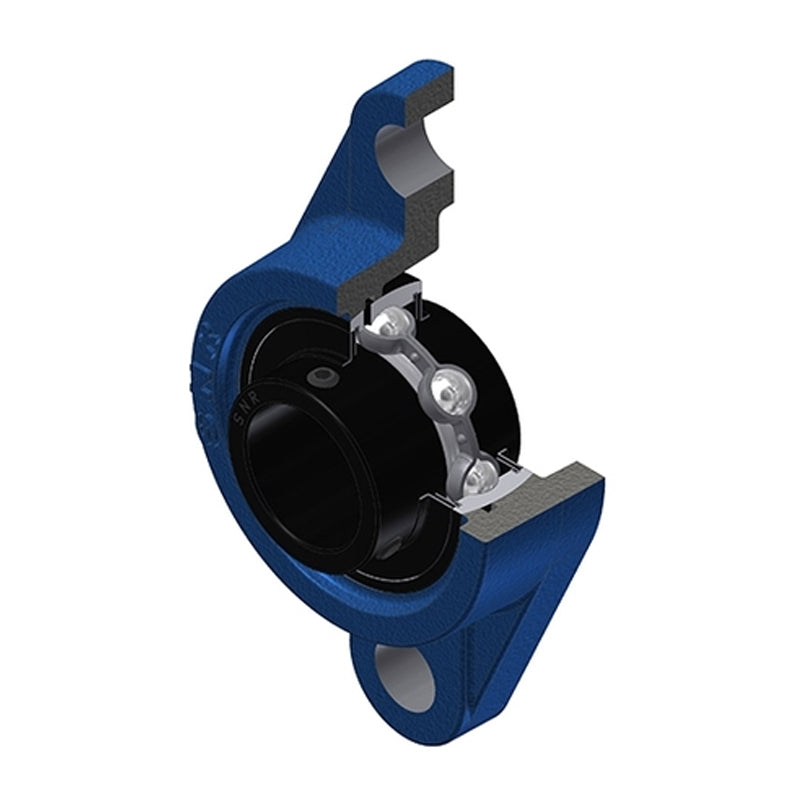

SNR UCFL205-16T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Not in stock
Quantity Price Breaks
3
€48.51
4
€45.78
9
€45.24
19
€44.69
49
€44.15
99
€43.60
499
€40.88
999
€40.33
1999
€39.79
2999
€39.24
4999
€38.15
SKU:
UCFL205-16T20-SNR
SNR UCFL205-16T20 Imperial Two Bolt Oval Cast Iron Flange Housing with 1 inch Bore Insert Wide Temperature Version - Allow 2-3 Days
- Regular price
- €54.50 ex VAT
- Sale price
- €54,50
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 1 inch |
| A | = | 27mm |
| A1 | = | 13mm |
| A2 | = | 35.7mm |
| B | = | 34mm |
| e | = | 16mm |
| H | = | 130mm |
| J | = | 90mm |
| L | = | 68mm |
| N | = | 16mm |
| S | = | 14.3mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 200& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 3.7 Nm |
| Mass | = | 0.61 kg |
