SKU: UCFL210T20-SNR

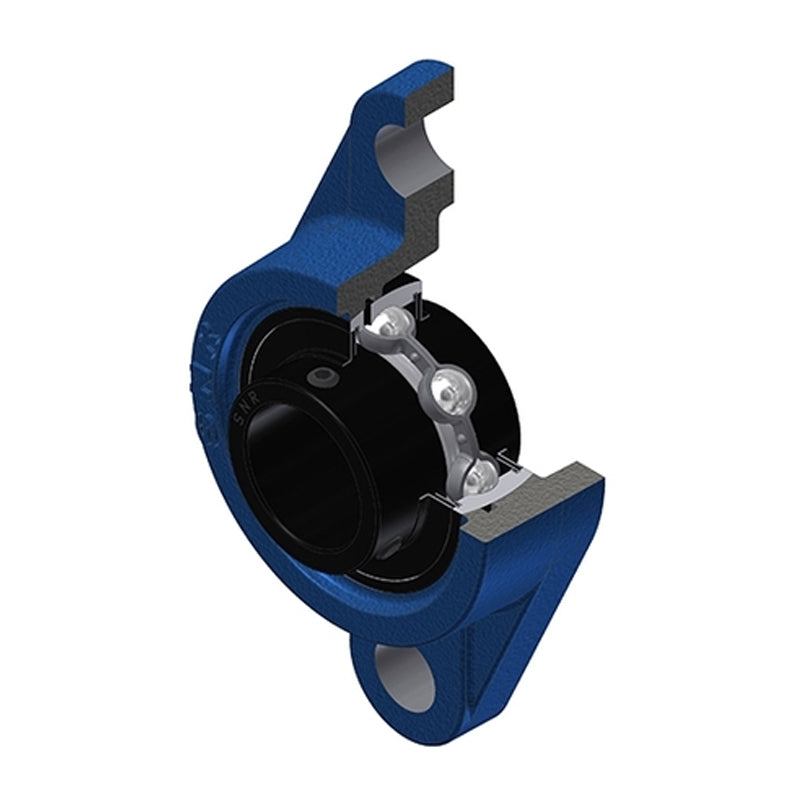

SNR UCFL210T20 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version
- Regular price
- €101.73 ex VAT
- Sale price
- €101,73
- Regular price
-
In stock
Quantity Price Breaks
3
€90.54
4
€85.45
9
€84.44
19
€83.42
49
€82.40
99
€81.38
499
€76.30
999
€75.28
1999
€74.26
2999
€73.25
4999
€71.21
SKU:
UCFL210T20-SNR
SNR UCFL210T20 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert Wide Temperature Version
- Regular price
- €101.73 ex VAT
- Sale price
- €101,73
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 40mm |
| A1 | = | 16mm |
| A2 | = | 54.6mm |
| B | = | 51.6mm |
| e | = | 22mm |
| H | = | 197mm |
| J | = | 157mm |
| L | = | 115mm |
| N | = | 19mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 200& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.19 kg |
