SKU: UCFLE207N-SNR

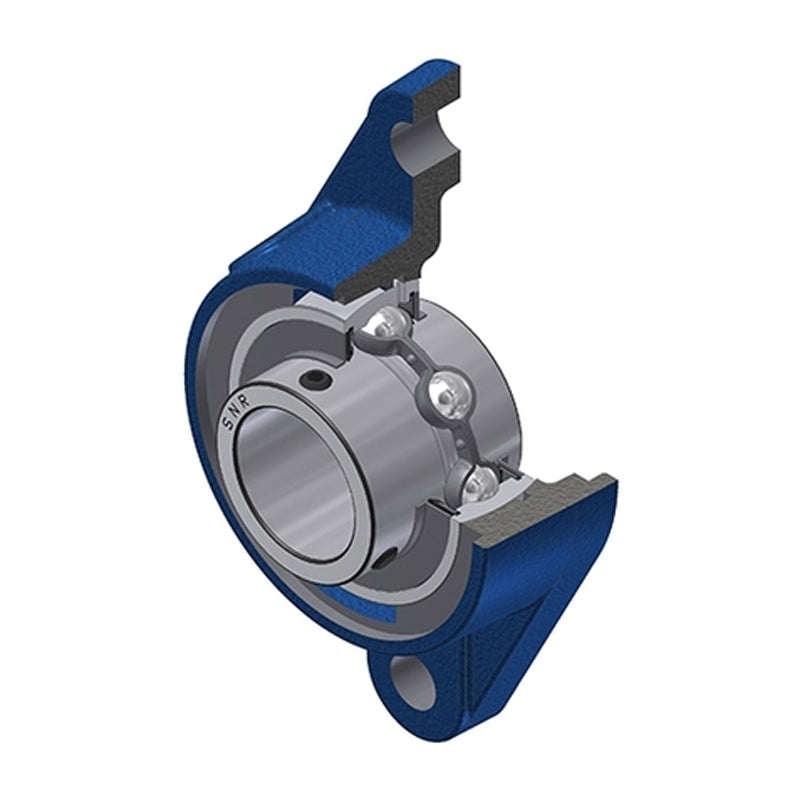

SNR UCFLE207N Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Not in stock
Quantity Price Breaks
3
€44.62
4
€42.12
9
€41.62
19
€41.11
49
€40.61
99
€40.11
499
€37.61
999
€37.10
1999
€36.60
2999
€36.10
4999
€35.10
SKU:
UCFLE207N-SNR
SNR UCFLE207N Metric Two Bolt Oval Cast Iron Flange Housing with 35mm Bore Insert - Allow 2-3 Days
- Regular price
- €50.14 ex VAT
- Sale price
- €50,14
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 35mm |
| A | = | 33.7mm |
| A1 | = | 12.5mm |
| A2 | = | 46.4mm |
| B | = | 42.9mm |
| e | = | 21mm |
| H | = | 155mm |
| J | = | 130mm |
| L | = | 92mm |
| N | = | 14mm |
| S | = | 17.5mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 25.7 kN |
| Static load C0 | = | 15.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 1.17 kg |
