SKU: UCFLZ204-SNR

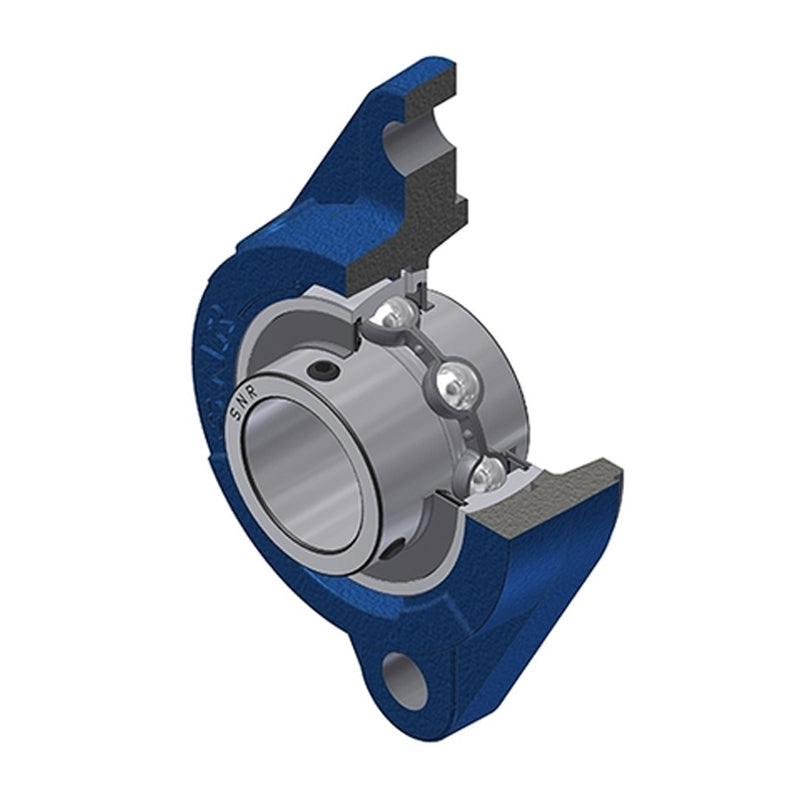

SNR UCFLZ204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Not in stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
UCFLZ204-SNR
SNR UCFLZ204 Metric Two Bolt Oval Cast Iron Flange Housing with 20mm Bore Insert - Allow 2-3 Days
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 20mm |
| A | = | 32mm |
| A1 | = | 10mm |
| A2 | = | 37.3mm |
| A4 | = | 28.5mm |
| B | = | 31mm |
| e | = | 19mm |
| H | = | 112.5mm |
| H3 | = | 55mm |
| J | = | 90mm |
| L | = | 60.5mm |
| N | = | 11.5mm |
| S | = | 12.7mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 12.8 kN |
| Static load C0 | = | 6.65 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.47 kg |
