SKU: UCFLZ205-SNR

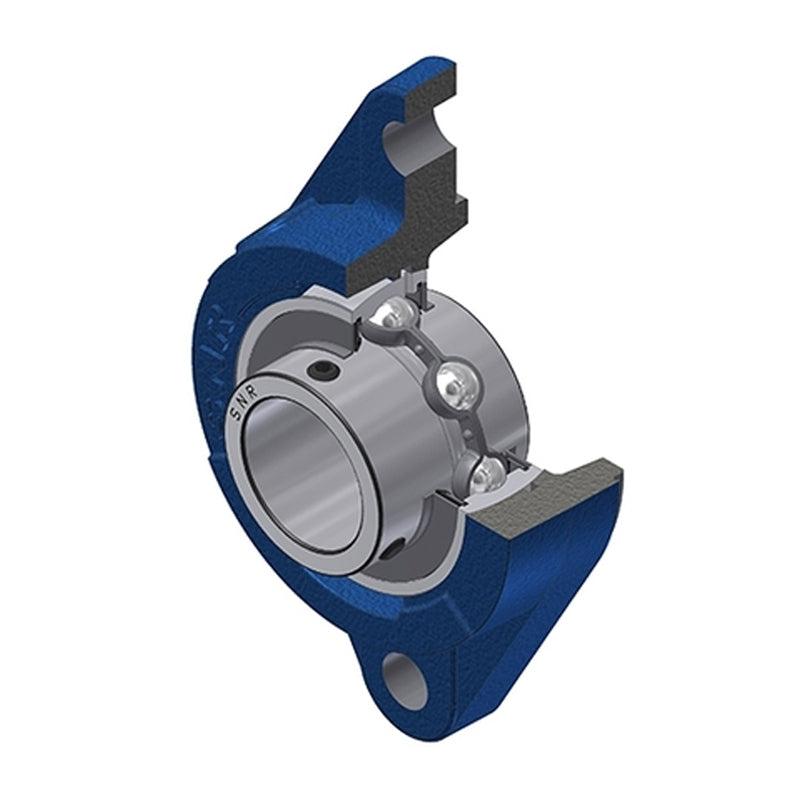

SNR UCFLZ205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Not in stock
Quantity Price Breaks
3
€28.03
4
€26.45
9
€26.14
19
€25.82
49
€25.51
99
€25.19
499
€23.62
999
€23.30
1999
€22.99
2999
€22.67
4999
€22.04
SKU:
UCFLZ205-SNR
SNR UCFLZ205 Metric Two Bolt Oval Cast Iron Flange Housing with 25mm Bore Insert - Allow 2-3 Days
- Regular price
- €31.49 ex VAT
- Sale price
- €31,49
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 25mm |
| A | = | 32.5mm |
| A1 | = | 12mm |
| A2 | = | 38.7mm |
| A4 | = | 29mm |
| B | = | 34mm |
| e | = | 19mm |
| H | = | 124mm |
| H3 | = | 60mm |
| J | = | 99mm |
| L | = | 70mm |
| N | = | 11.5mm |
| S | = | 14.3mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 5.5 Nm |
| Mass | = | 0.71 kg |
