SKU: UCFLZ210-SNR

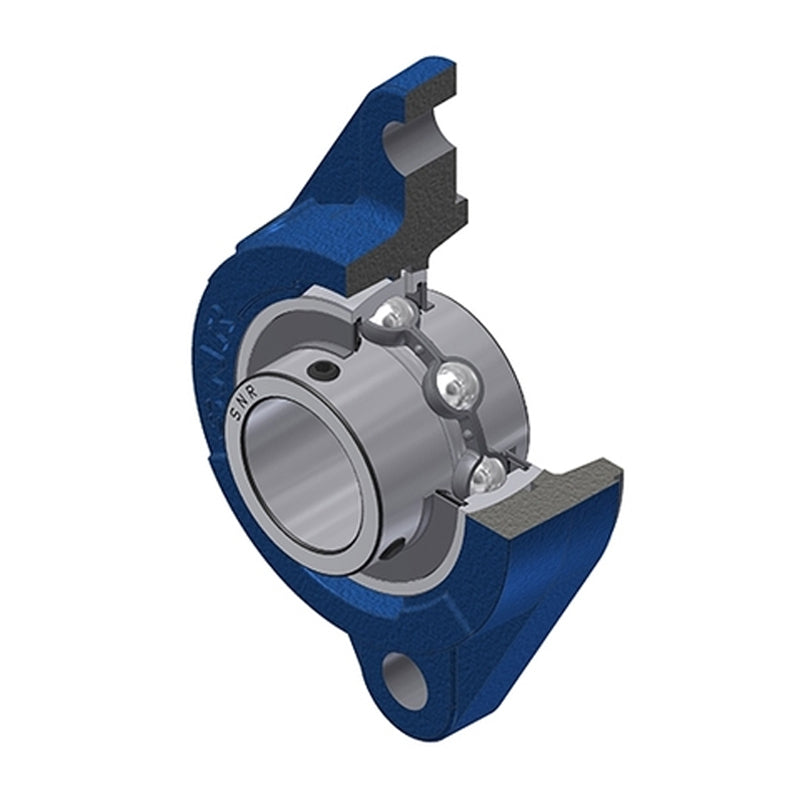

SNR UCFLZ210 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €57.96 ex VAT
- Sale price
- €57,96
- Regular price
-
Not in stock
Quantity Price Breaks
3
€51.58
4
€48.69
9
€48.11
19
€47.53
49
€46.95
99
€46.37
499
€43.47
999
€42.89
1999
€42.31
2999
€41.73
4999
€40.57
SKU:
UCFLZ210-SNR
SNR UCFLZ210 Metric Two Bolt Oval Cast Iron Flange Housing with 50mm Bore Insert - Allow 2-3 Days
- Regular price
- €57.96 ex VAT
- Sale price
- €57,96
- Regular price
-
Description
|
UCFL or SFT Series 2 Bolt Oval Cast Iron Housings: Bearing unit supplied with a fully sealed bearing insert fitted in the oval cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical

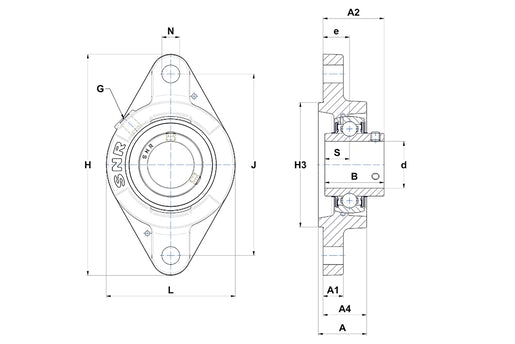

| --- | = | Dimensions |
| Shaft diameter d | = | 50mm |
| A | = | 41mm |
| A1 | = | 13mm |
| A2 | = | 56.6mm |
| A4 | = | 37mm |
| B | = | 51.6mm |
| e | = | 24mm |
| H | = | 190mm |
| H3 | = | 105mm |
| J | = | 157mm |
| L | = | 116mm |
| N | = | 14mm |
| S | = | 19mm |
| G | = | R1/8& |
| Prime | = | |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.1 kg |
