SKU: UCFS309-SNR

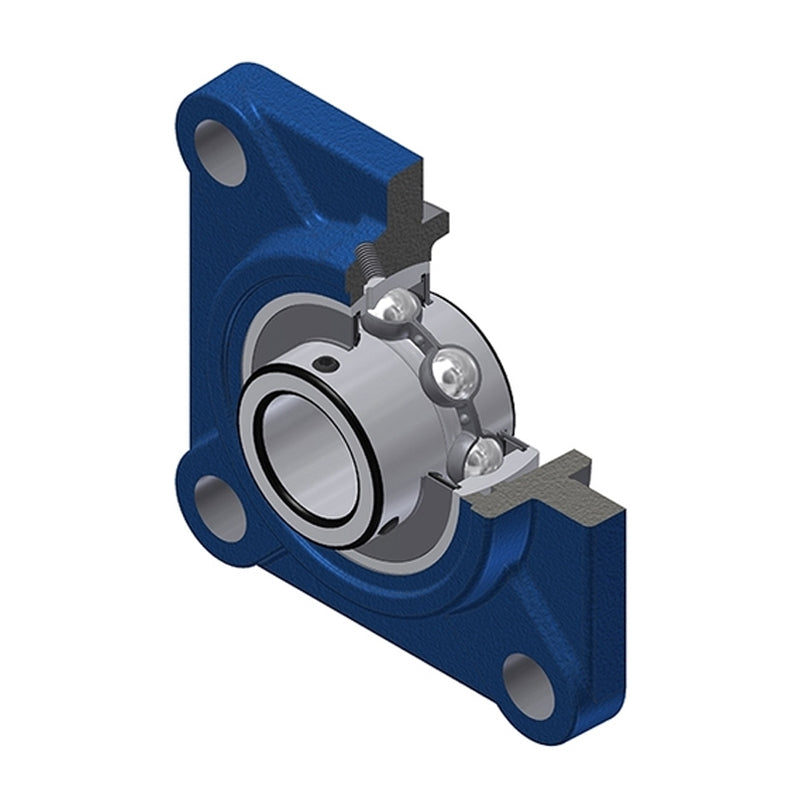

SNR UCFS309 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €78.71 ex VAT
- Sale price
- €78,71
- Regular price
-
Not in stock
Quantity Price Breaks
3
€70.05
4
€66.12
9
€65.33
19
€64.54
49
€63.76
99
€62.97
499
€59.03
999
€58.25
1999
€57.46
2999
€56.67
4999
€55.10
SKU:
UCFS309-SNR
SNR UCFS309 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
- Regular price
- €78.71 ex VAT
- Sale price
- €78,71
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 45mm |
| A | = | 44mm |
| A1 | = | 18mm |
| A2 | = | 49mm |
| A4 | = | 33mm |
| B | = | 57mm |
| e | = | 14mm |
| H3 | = | 125mm |
| J | = | 125mm |
| L | = | 160mm |
| N | = | 19mm |
| S | = | 22mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 53 kN |
| Static load C0 | = | 31.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 3.88 kg |
