SKU: UCFS311-SNR

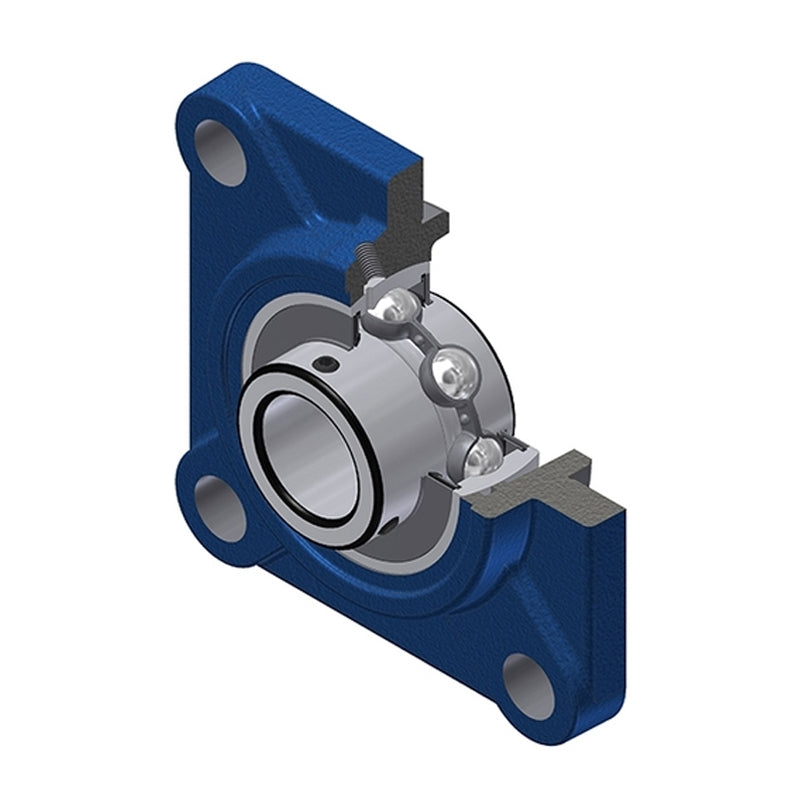

SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- €115.19 ex VAT
- Sale price
- €115,19
- Regular price
-
Not in stock
Quantity Price Breaks
3
€102.52
4
€96.76
9
€95.61
19
€94.46
49
€93.30
99
€92.15
499
€86.39
999
€85.24
1999
€84.09
2999
€82.94
4999
€80.63
SKU:
UCFS311-SNR
SNR UCFS311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
- Regular price
- €115.19 ex VAT
- Sale price
- €115,19
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 55mm |
| A | = | 52mm |
| A1 | = | 20mm |
| A2 | = | 58mm |
| A4 | = | 39mm |
| B | = | 66mm |
| e | = | 17mm |
| H3 | = | 150mm |
| J | = | 140mm |
| L | = | 185mm |
| N | = | 23mm |
| S | = | 25mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 71.5 kN |
| Static load C0 | = | 44.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 5.7 kg |
