SKU: UCFS312-SNR

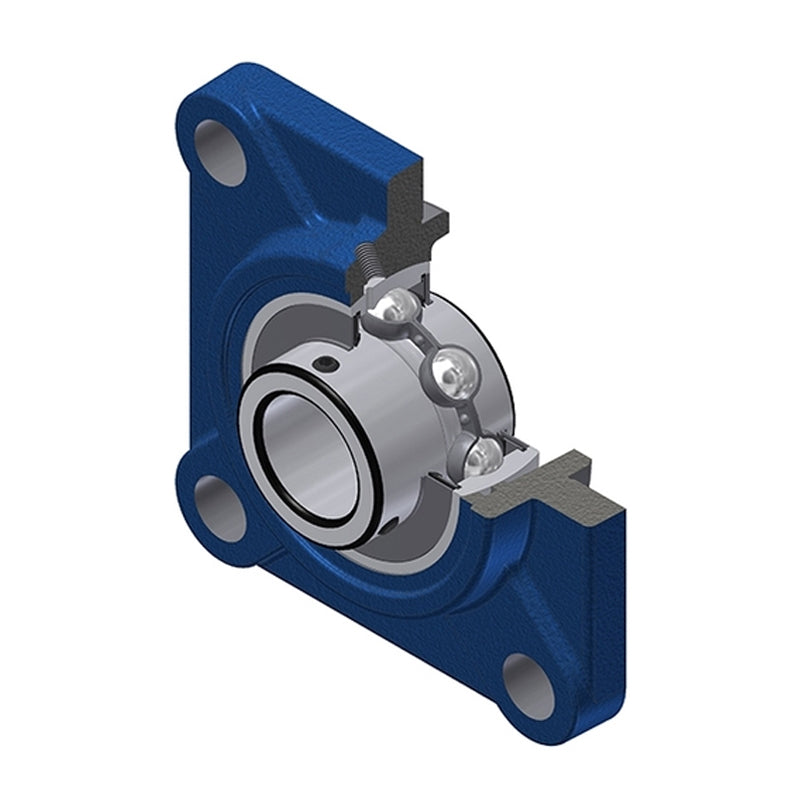

SNR UCFS312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- €134.43 ex VAT
- Sale price
- €134,43
- Regular price
-
Not in stock
Quantity Price Breaks
3
€119.64
4
€112.92
9
€111.58
19
€110.23
49
€108.89
99
€107.54
499
€100.82
999
€99.48
1999
€98.13
2999
€96.79
4999
€94.10
SKU:
UCFS312-SNR
SNR UCFS312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
- Regular price
- €134.43 ex VAT
- Sale price
- €134,43
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 56mm |
| A1 | = | 22mm |
| A2 | = | 64mm |
| A4 | = | 42mm |
| B | = | 71mm |
| e | = | 19mm |
| H3 | = | 160mm |
| J | = | 150mm |
| L | = | 195mm |
| N | = | 23mm |
| S | = | 26mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 81.6 kN |
| Static load C0 | = | 51.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 33 Nm |
| Mass | = | 7.5 kg |
