SKU: UCFS315-SNR

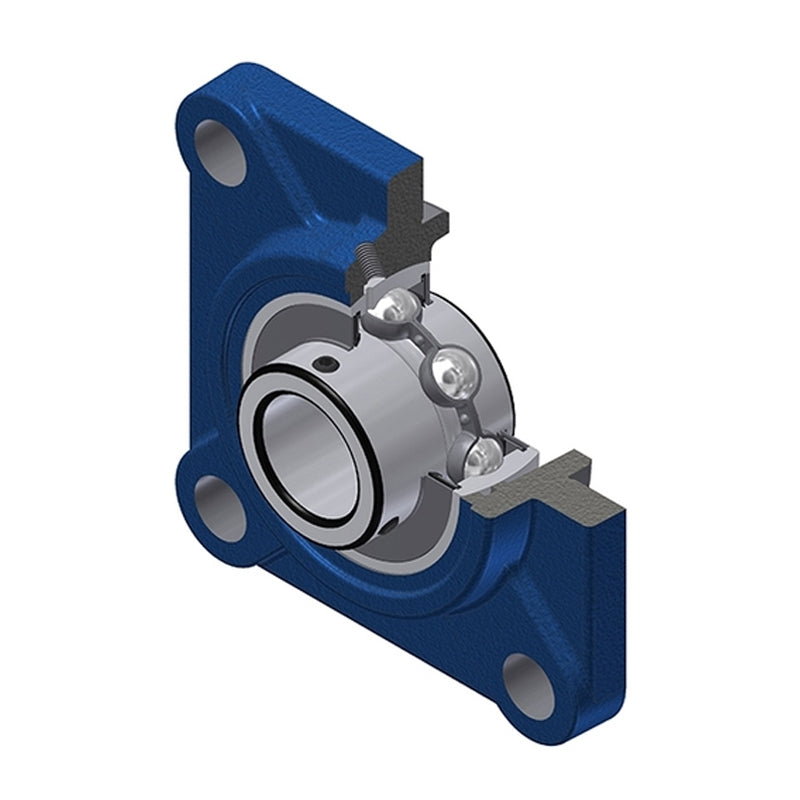

SNR UCFS315 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
- Regular price
- €210.72 ex VAT
- Sale price
- €210,72
- Regular price
-
Not in stock
Quantity Price Breaks
3
€187.54
4
€177.00
9
€174.90
19
€172.79
49
€170.68
99
€168.58
499
€158.04
999
€155.93
1999
€153.83
2999
€151.72
4999
€147.50
SKU:
UCFS315-SNR
SNR UCFS315 Metric Four Bolt Square Cast Iron Flange Housing with 75mm Bore Insert - Allow 2-3 Days
- Regular price
- €210.72 ex VAT
- Sale price
- €210,72
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 75mm |
| A | = | 66mm |
| A1 | = | 25mm |
| A2 | = | 71mm |
| A4 | = | 48mm |
| B | = | 82mm |
| e | = | 21mm |
| H3 | = | 200mm |
| J | = | 184mm |
| L | = | 236mm |
| N | = | 25mm |
| S | = | 32mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 113.36 kN |
| Static load C0 | = | 76.8 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 42 Nm |
| Mass | = | 12.43 kg |
