SKU: UCFS317-SNR

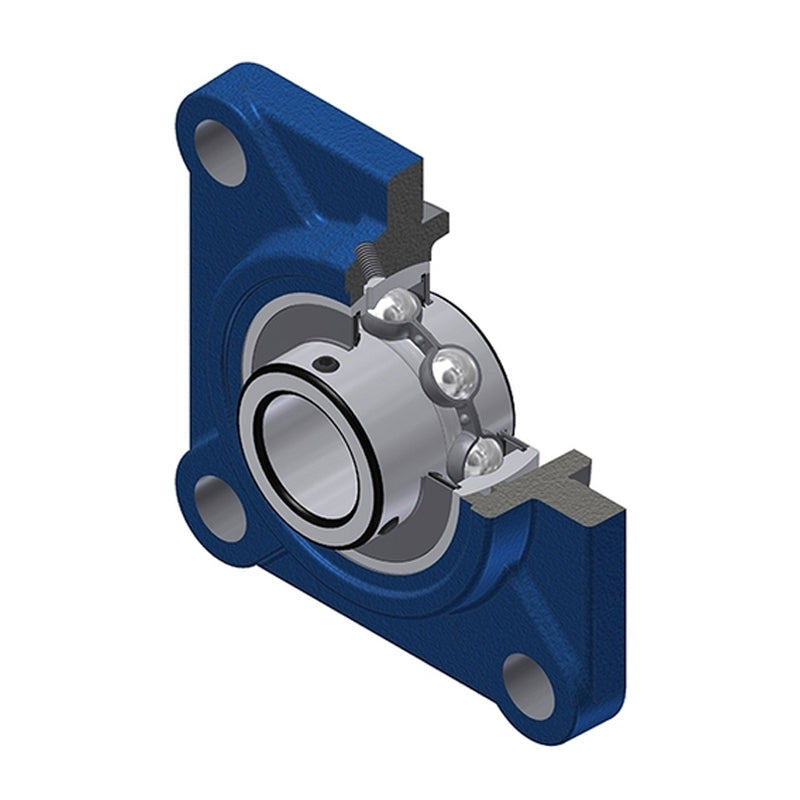

SNR UCFS317 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- €284.48 ex VAT
- Sale price
- €284,48
- Regular price
-
Not in stock
Quantity Price Breaks
3
€253.19
4
€238.96
9
€236.12
19
€233.27
49
€230.43
99
€227.58
499
€213.36
999
€210.52
1999
€207.67
2999
€204.83
4999
€199.14
SKU:
UCFS317-SNR
SNR UCFS317 Metric Four Bolt Square Cast Iron Flange Housing with 85mm Bore Insert - Allow 2-3 Days
- Regular price
- €284.48 ex VAT
- Sale price
- €284,48
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 85mm |
| A | = | 74mm |
| A1 | = | 27mm |
| A2 | = | 80mm |
| A4 | = | 54mm |
| B | = | 96mm |
| e | = | 24mm |
| H3 | = | 220mm |
| J | = | 204mm |
| L | = | 260mm |
| N | = | 31mm |
| S | = | 40mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 132.6 kN |
| Static load C0 | = | 96.5 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 64 Nm |
| Mass | = | 17.34 kg |
