SKU: UCFS322-SNR

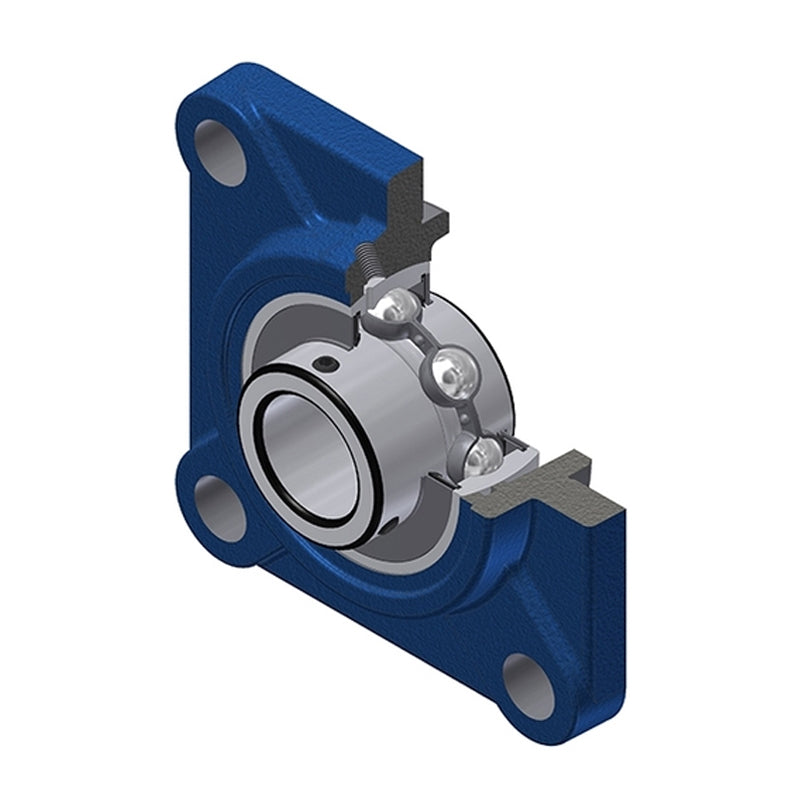

SNR UCFS322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
- Regular price
- €579.86 ex VAT
- Sale price
- €579,86
- Regular price
-
Not in stock
Quantity Price Breaks
3
€516.08
4
€487.08
9
€481.28
19
€475.49
49
€469.69
99
€463.89
499
€434.90
999
€429.10
1999
€423.30
2999
€417.50
4999
€405.90
SKU:
UCFS322-SNR
SNR UCFS322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
- Regular price
- €579.86 ex VAT
- Sale price
- €579,86
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 110mm |
| A | = | 96mm |
| A1 | = | 35mm |
| A2 | = | 106mm |
| A4 | = | 71mm |
| B | = | 117mm |
| e | = | 35mm |
| H3 | = | 300mm |
| J | = | 266mm |
| L | = | 340mm |
| N | = | 41mm |
| S | = | 46mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 205 kN |
| Static load C0 | = | 178 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 75 Nm |
| Mass | = | 38.3 kg |
