SKU: UCFS324-SNR

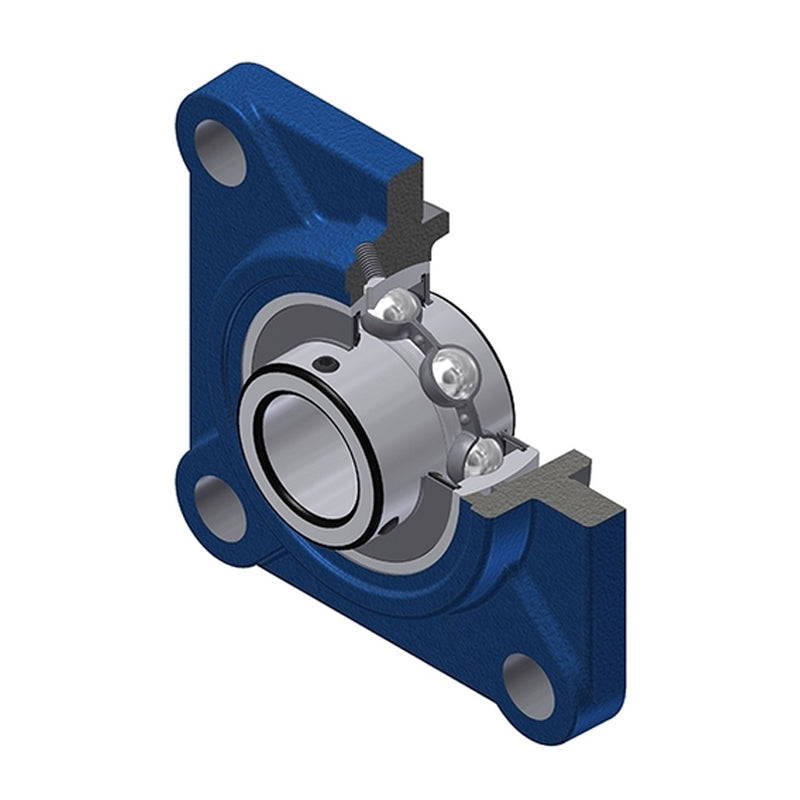

SNR UCFS324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- €796.88 ex VAT
- Sale price
- €796,88
- Regular price
-
Not in stock
Quantity Price Breaks
3
€709.22
4
€669.38
9
€661.41
19
€653.44
49
€645.47
99
€637.50
499
€597.66
999
€589.69
1999
€581.72
2999
€573.75
4999
€557.82
SKU:
UCFS324-SNR
SNR UCFS324 Metric Four Bolt Square Cast Iron Flange Housing with 120mm Bore Insert - Allow 2-3 Days
- Regular price
- €796.88 ex VAT
- Sale price
- €796,88
- Regular price
-
Description
UCFS Series 4 Bolt Square Cast Iron Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the cast iron housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Benefits: Cost-effective bearing/housing assembly, can be re-lubricated, replaceable insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 120mm |
| A | = | 110mm |
| A1 | = | 40mm |
| A2 | = | 110mm |
| A4 | = | 80mm |
| B | = | 126mm |
| e | = | 35mm |
| H3 | = | 330mm |
| J | = | 290mm |
| L | = | 370mm |
| N | = | 41mm |
| S | = | 51mm |
| G | = | M10x1 |
| --- | = | Load rating |
| Dynamic load C | = | 228 kN |
| Static load C0 | = | 208 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 75 Nm |
| Mass | = | 51.7 kg |
