SKU: UCHA204
UCHA204 Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert
- Regular price
- €14.72 ex VAT
- Sale price
- €14,72
- Regular price
-
In stock
Quantity Price Breaks
3
€13.10
4
€12.36
9
€12.22
19
€12.07
49
€11.92
99
€11.78
499
€11.04
999
€10.89
1999
€10.75
2999
€10.60
4999
€10.30
SKU:
UCHA204
UCHA204 Metric Cast Iron Hanger Bearing Unit with 20mm Bore Insert
- Regular price
- €14.72 ex VAT
- Sale price
- €14,72
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

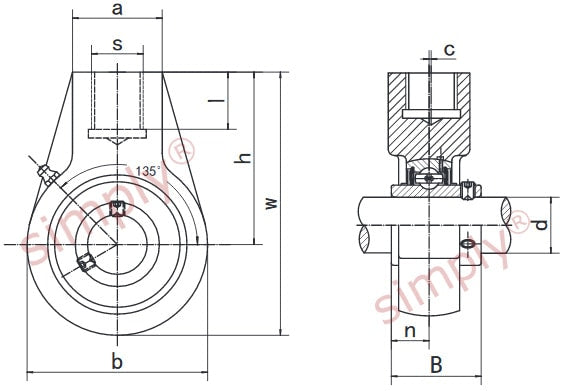

Technical
| d | = | 20mm |
| h | = | 2-33/64 inch |
| w | = | 3-25/32 inch |
| b | = | 2-33/64 inch |
| c | = | 0 inch |
| a | = | 1-37/64 inch |
| s | = | G-3/4 |
| l | = | 3/4 inch |
| B | = | 1.2205 inch |
| n | = | 0.5 inch |
| Bearing no | = | UC204 |
| Housing no | = | HA204 |
| Weight | = | 0.596 kg |
