SKU: UCHA207

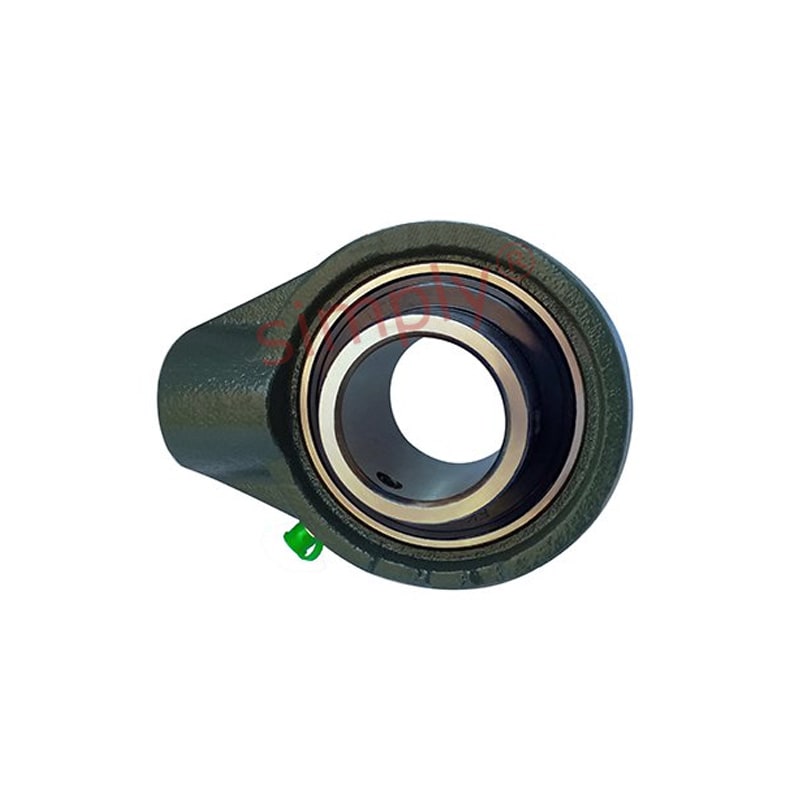

UCHA207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert
- Regular price
- €28.03 ex VAT
- Sale price
- €28,03
- Regular price
-
Not in stock
Quantity Price Breaks
3
€24.95
4
€23.55
9
€23.26
19
€22.98
49
€22.70
99
€22.42
499
€21.02
999
€20.74
1999
€20.46
2999
€20.18
4999
€19.62
SKU:
UCHA207
UCHA207 Metric Cast Iron Hanger Bearing Unit with 35mm Bore Insert
- Regular price
- €28.03 ex VAT
- Sale price
- €28,03
- Regular price
-
Description
UCHA200 Series Normal Duty Screw Conveyor Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 35mm |
| h | = | 70mm |
| w | = | 116mm |
| b | = | 92mm |
| c | = | 0mm |
| a | = | 40mm |
| s | = | G-3/4 |
| l | = | 19mm |
| B | = | 42.9mm |
| n | = | 17.5mm |
| Bearing no | = | UC207 |
| Housing no | = | HA207 |
| Weight | = | 1.099 kg |
