SKU: UCP.308

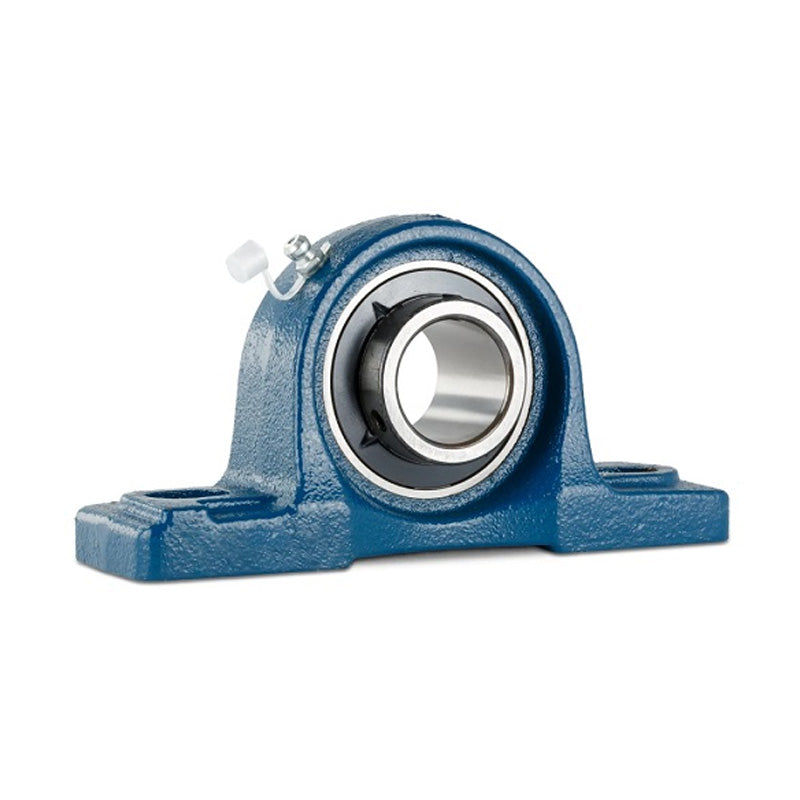

UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
In stock
Quantity Price Breaks
3
€38.80
4
€36.62
9
€36.19
19
€35.75
49
€35.32
99
€34.88
499
€32.70
999
€32.26
1999
€31.83
2999
€31.39
4999
€30.52
SKU:
UCP.308
UCP308 Metric Two Bolt Cast Iron Plummer / Pillow Housing with 40mm Bore Insert
- Regular price
- €43.60 ex VAT
- Sale price
- €43,60
- Regular price
-
Description
UCP 300 Series Plummer / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing
Technical
| d | = | 40mm |
| h | = | 60mm |
| a | = | 220mm |
| e | = | 170mm |
| b | = | 60mm |
| s2 | = | 27mm |
| s1 | = | 17mm |
| g | = | 22mm |
| w | = | 116mm |
| b1 | = | 52mm |
| n | = | 19mm |
| Bolt | = | 14mm |
| Weight | = | 3.6 kg |
| Dynamic load | = | 3200 kgf |
| Static load | = | 2280 kgf |
