SKU: UCPA210-SNR

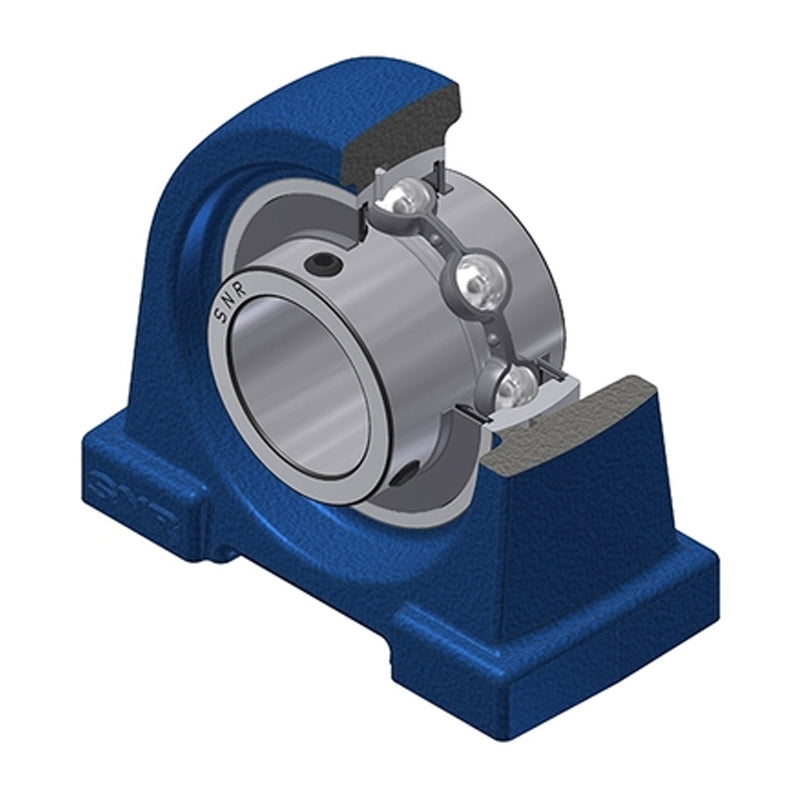

SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
In stock
Quantity Price Breaks
3
€53.36
4
€50.36
9
€49.76
19
€49.16
49
€48.56
99
€47.96
499
€44.96
999
€44.36
1999
€43.76
2999
€43.16
4999
€41.97
SKU:
UCPA210-SNR
SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
- Regular price
- €59.95 ex VAT
- Sale price
- €59,95
- Regular price
-
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 50mm |
| A | = | 60mm |
| A1 | = | 32mm |
| B | = | 51.6mm |
| E | = | 25mm |
| H | = | 57.2mm |
| H1 | = | 14mm |
| H2 | = | 116mm |
| J | = | 94mm |
| L | = | 130mm |
| L1 | = | 35mm |
| N | = | M16 |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 35.1 kN |
| Static load C0 | = | 23.2 kN |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| --- | = | Unit information |
| Recommended tightening torque for set screw | = | 22 Nm |
| Mass | = | 2.6 kg |
