SKU: UCPH208-SNR

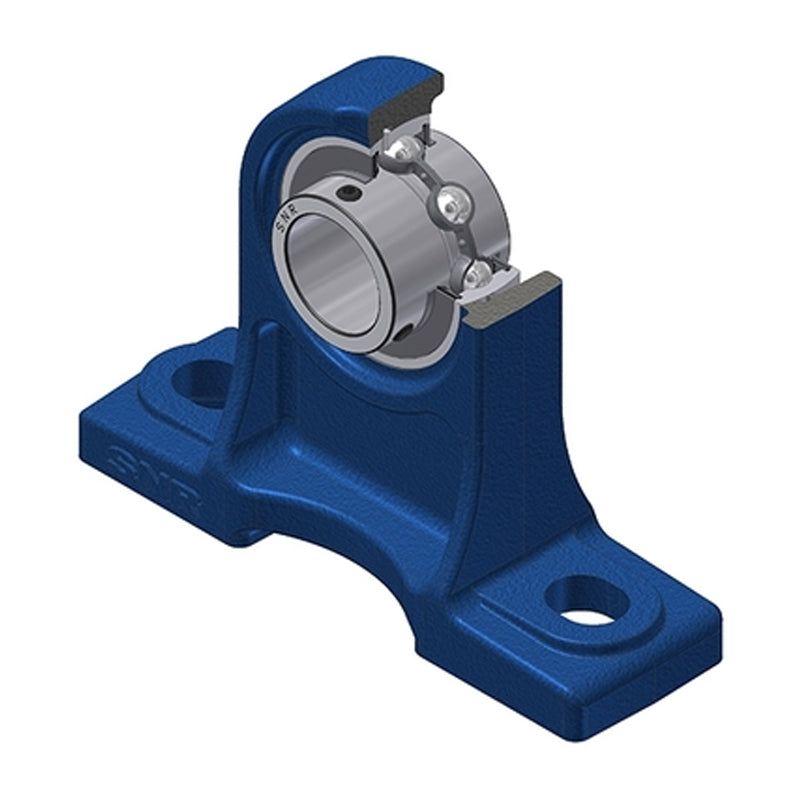

SNR UCPH208 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Not in stock
Quantity Price Breaks
3
€38.92
4
€36.73
9
€36.30
19
€35.86
49
€35.42
99
€34.98
499
€32.80
999
€32.36
1999
€31.92
2999
€31.49
4999
€30.61
SKU:
UCPH208-SNR
SNR UCPH208 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert - Allow 2-3 Days
- Regular price
- €43.73 ex VAT
- Sale price
- €43,73
- Regular price
-
Description
UCHP/UCPH Series 2 Bolt Cast Iron High Centre Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 40mm |
| A | = | 70mm |
| A1 | = | 34mm |
| B | = | 49.2mm |
| H | = | 100mm |
| H1 | = | 19mm |
| H2 | = | 149mm |
| J | = | 137mm |
| L | = | 184mm |
| L1 | = | 58mm |
| N | = | 17mm |
| N1 | = | 25mm |
| S | = | 19mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 29.6 kN |
| Static load C0 | = | 18.2 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Recommended tightening torque for set screw | = | 11.5 Nm |
| Mass | = | 2.84 kg |
