SKU: UCT.204.TS.CHAL
Challenge / FK UCT204 Metric Cast Iron Take Up Unit Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €28.12 ex VAT
- Sale price
- €28,12
- Regular price
-
Quantity Price Breaks
Challenge / FK UCT204 Metric Cast Iron Take Up Unit Housing with 20mm Bore Insert and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €28.12 ex VAT
- Sale price
- €28,12
- Regular price
-
Description
UCT Cast Iron Take Up Unit Housing: These normal-duty bearing units are fitted with a triple lip seal in a cast iron housing and includes a grease nipple to facilitate re-lubrication. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: High tolerance to harsh environments, cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing

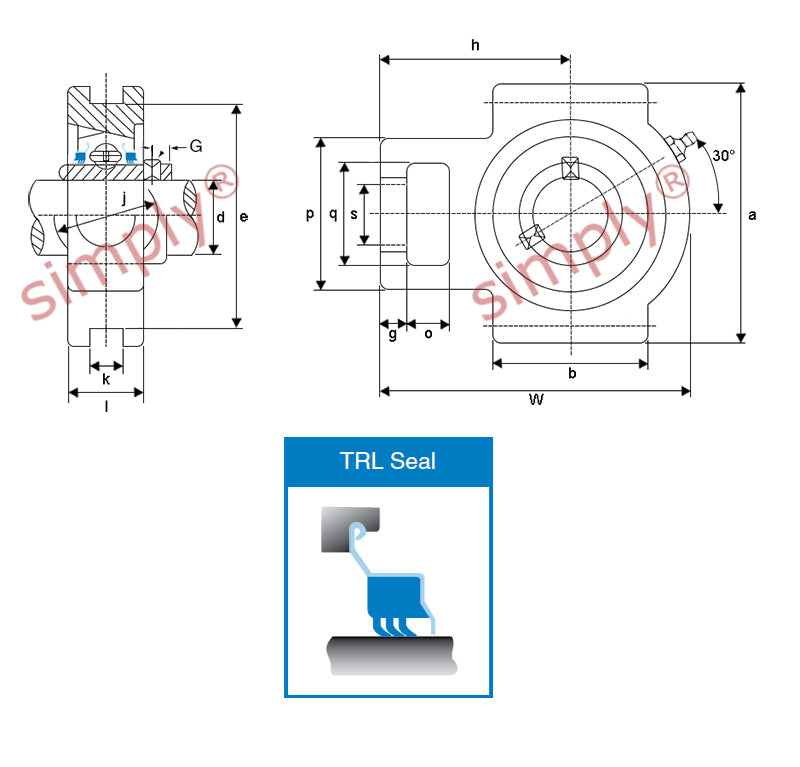

Technical
| Shaft Diameter d | = | 20mm |
| Nut Slot Width o | = | 16mm |
| Distance g | = | 10mm |
| Dimention p | = | 51mm |
| Dimention q | = | 32mm |
| Hole s | = | 19mm |
| Dimention b | = | 51mm |
| Slot Width k | = | 12mm |
| Distance Between Slots e | = | 76mm |
| Overall Casting Depth a | = | 89mm |
| Width w | = | 94mm |
| Diameter j | = | 32mm |
| Casting Width at Slots l | = | 24mm |
| Dimension h | = | 61mm |
| Grub Screws x 2 | = | M6x0.75 |
| Load Rating (Dynamic) | = | 1000kg |
| Load Rating (Static) | = | 630kg |
| Max Speed | = | 4000 rev/min |
| Grease Nipple Thread Size | = | M6 |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
| Insert No | = | UC204 |
| Housing No | = | T204 |
