SKU: UCT.207-22

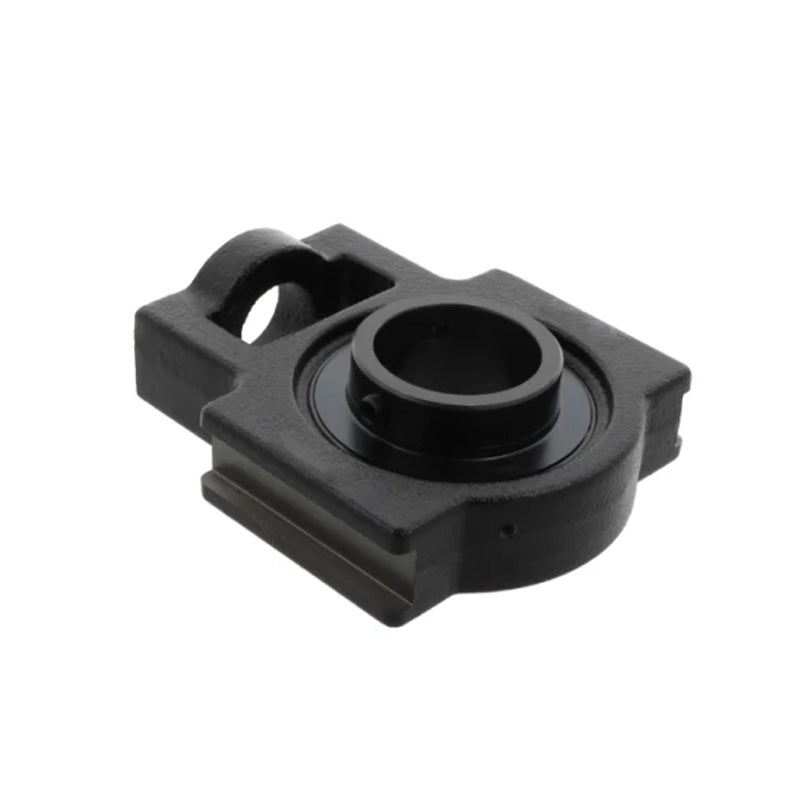

UCT207-22 Metric Series Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Bearing Unit
- Regular price
- €23.32 ex VAT
- Sale price
- €23,32
- Regular price
-
In stock
Quantity Price Breaks
3
€20.75
4
€19.59
9
€19.36
19
€19.12
49
€18.89
99
€18.66
499
€17.49
999
€17.26
1999
€17.02
2999
€16.79
4999
€16.32
SKU:
UCT.207-22
UCT207-22 Metric Series Cast Iron Take Up Unit Housing with 1-3/8 inch Bore Bearing Unit
- Regular price
- €23.32 ex VAT
- Sale price
- €23,32
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 1-3/8 inch |
| o | = | 16mm |
| g | = | 13mm |
| p | = | 64mm |
| q | = | 37mm |
| s | = | 22mm |
| b | = | 64mm |
| k | = | 12mm |
| e | = | 89mm |
| a | = | 102mm |
| W | = | 129mm |
| j | = | 37mm |
| L | = | 30mm |
| h | = | 78mm |
| Bi | = | 42.9mm |
| n | = | 17.5mm |
| Weight | = | 1.3 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
