SKU: UCT.209

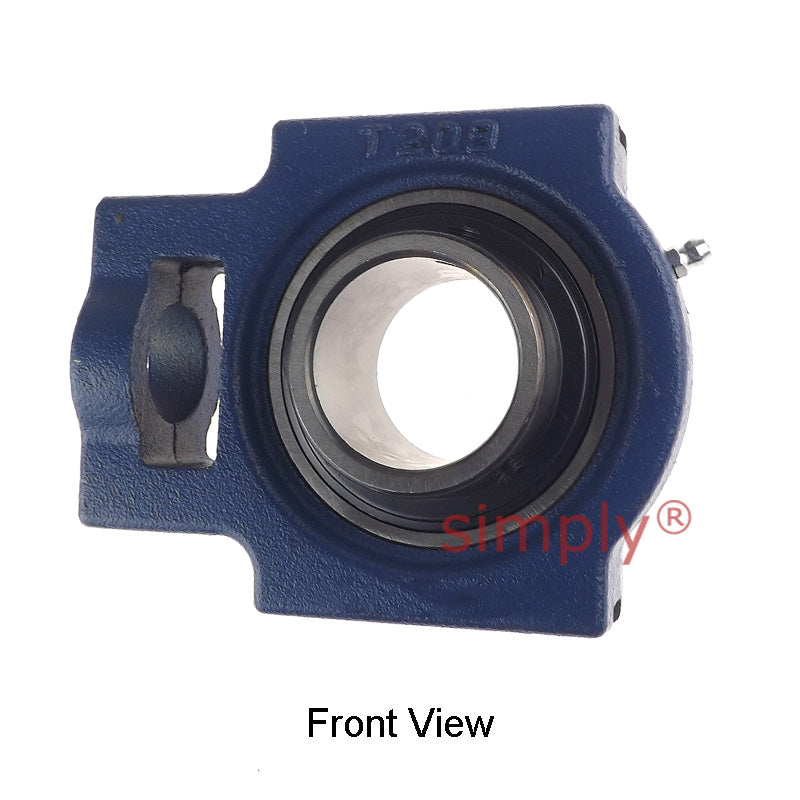

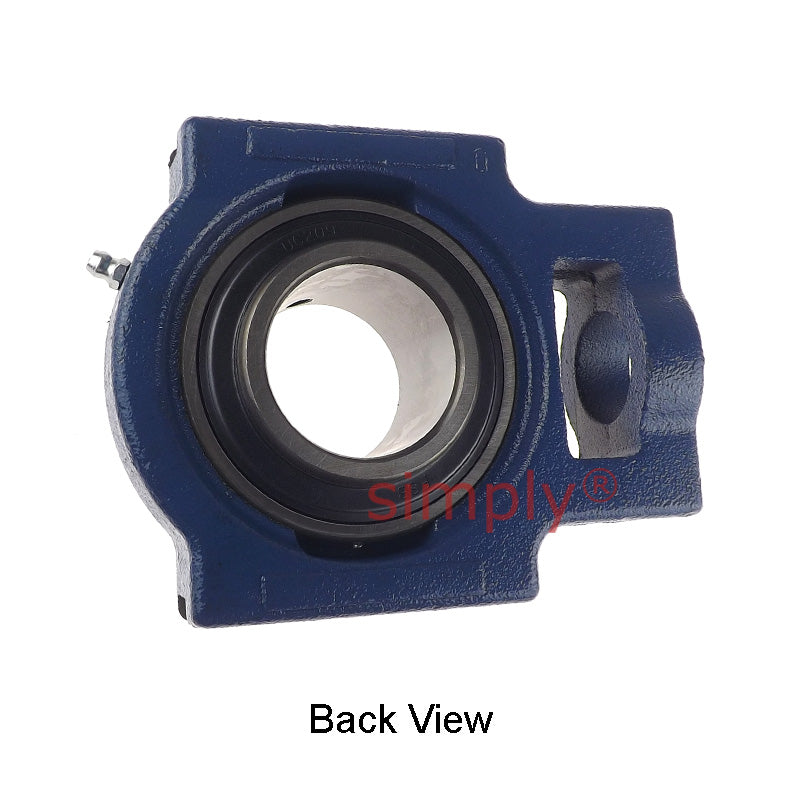

UCT209 Metric Series Cast Iron Take Up Unit Housing with 45mm Bore Bearing Unit
- Regular price
- €32.10 ex VAT
- Sale price
- €32,10
- Regular price
-
Not in stock
Quantity Price Breaks
3
€28.57
4
€26.96
9
€26.64
19
€26.32
49
€26.00
99
€25.68
499
€24.08
999
€23.75
1999
€23.43
2999
€23.11
4999
€22.47
SKU:
UCT.209
UCT209 Metric Series Cast Iron Take Up Unit Housing with 45mm Bore Bearing Unit
- Regular price
- €32.10 ex VAT
- Sale price
- €32,10
- Regular price
-
Description
|
UCT or ST Series Take Up Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the slotted take up housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Technical
| d | = | 45mm |
| o | = | 19mm |
| g | = | 16mm |
| p | = | 83mm |
| q | = | 49mm |
| s | = | 29mm |
| b | = | 83mm |
| k | = | 16mm |
| e | = | 102mm |
| a | = | 117mm |
| W | = | 144mm |
| j | = | 49mm |
| L | = | 35mm |
| h | = | 87mm |
| Bi | = | 49.2mm |
| n | = | 19mm |
| Weight | = | 2.4 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
