SKU: UCT308

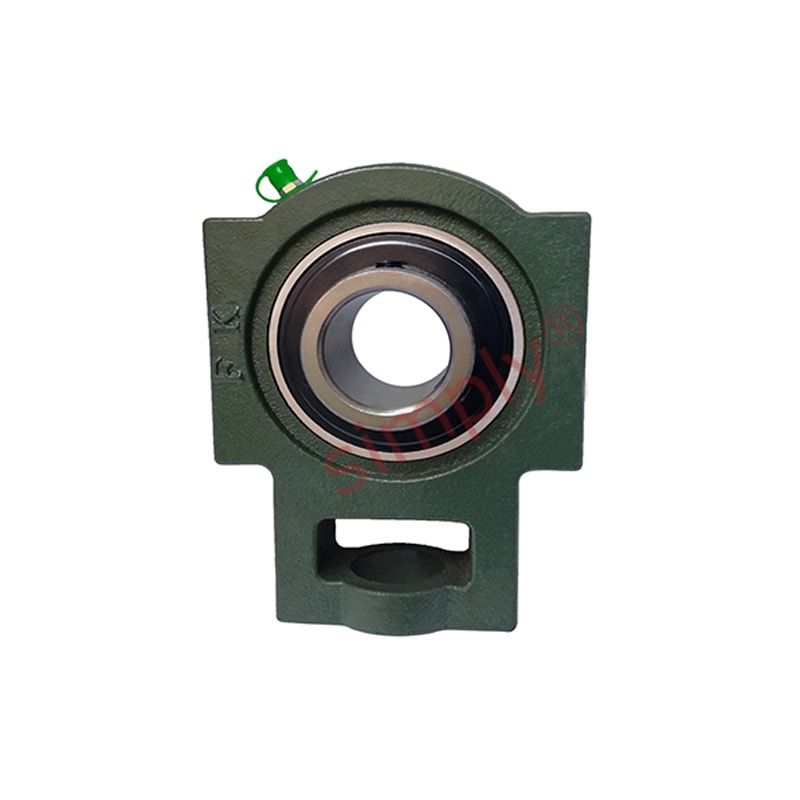

UCT308 Metric Cast Iron Take Up Unit Housing with 40mm Bore Insert
- Regular price
- €39.42 ex VAT
- Sale price
- €39,42
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€35.08
4
€33.11
9
€32.72
19
€32.32
49
€31.93
99
€31.54
499
€29.57
999
€29.17
1999
€28.78
2999
€28.38
4999
€27.59
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 40mm |
| o | = | 22mm |
| g | = | 19mm |
| p | = | 83mm |
| q | = | 50mm |
| s | = | 32mm |
| b | = | 89mm |
| k | = | 18mm |
| e | = | 112mm |
| a | = | 124mm |
| w | = | 162mm |
| j | = | 50mm |
| l | = | 34mm |
| h | = | 100mm |
| B | = | 52mm |
| n | = | 19mm |
| Bearing no | = | UC308 |
| Housing no | = | T308 |
| Weight | = | 2.9 kg |
