SKU: UCT314

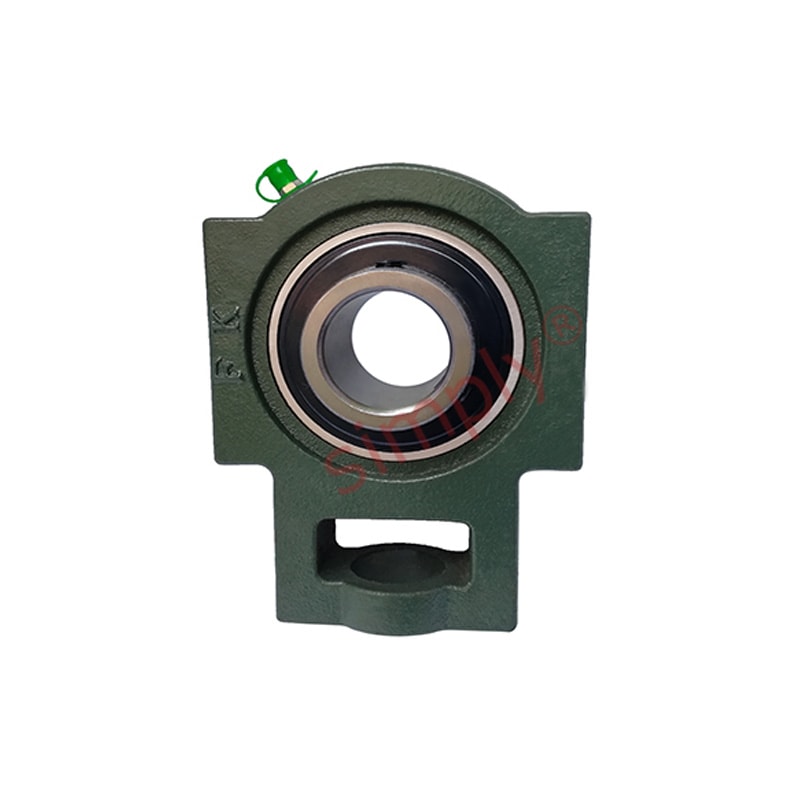

UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
- Regular price
- €119.48 ex VAT
- Sale price
- €119,48
- Regular price
-
Not in stock
Quantity Price Breaks
3
€106.34
4
€100.36
9
€99.17
19
€97.97
49
€96.78
99
€95.58
499
€89.61
999
€88.42
1999
€87.22
2999
€86.03
4999
€83.64
SKU:
UCT314
UCT314 Metric Cast Iron Take Up Unit Housing with 70mm Bore Insert
- Regular price
- €119.48 ex VAT
- Sale price
- €119,48
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 70mm |
| o | = | 36mm |
| g | = | 27mm |
| p | = | 130mm |
| q | = | 85mm |
| s | = | 46mm |
| b | = | 140mm |
| k | = | 26mm |
| e | = | 180mm |
| a | = | 202mm |
| w | = | 252mm |
| j | = | 90mm |
| l | = | 52mm |
| h | = | 155mm |
| B | = | 78mm |
| n | = | 33mm |
| Bearing no | = | UC314 |
| Housing no | = | T314 |
| Weight | = | 10.9 kg |
