SKU: UCT317

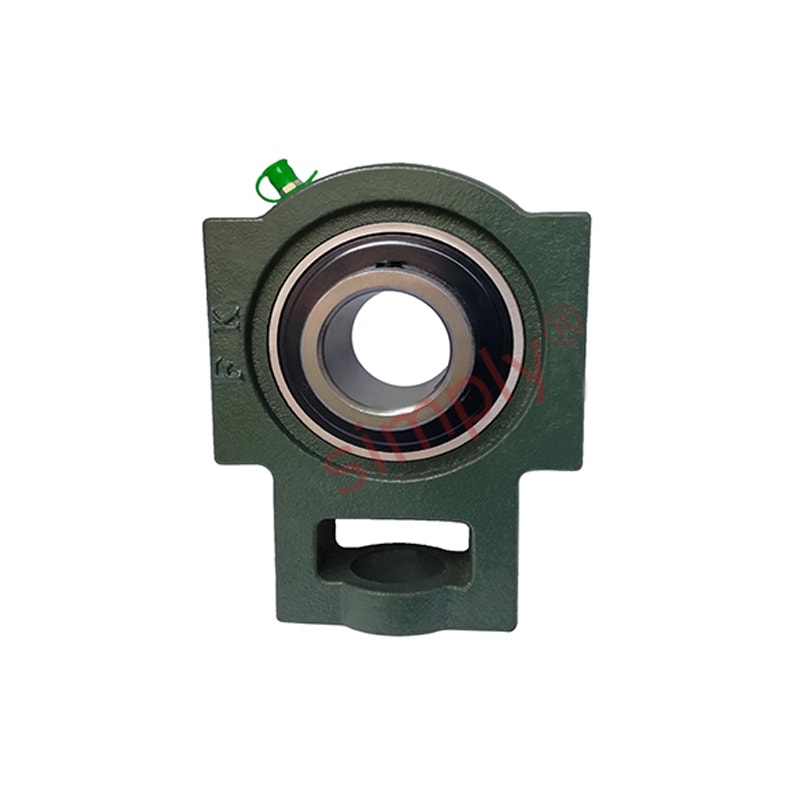

UCT317 Metric Cast Iron Take Up Unit Housing with 85mm Bore Insert
- Regular price
- €242.06 ex VAT
- Sale price
- €242,06
- Regular price
-
Not in stock
Quantity Price Breaks
3
€215.43
4
€203.33
9
€200.91
19
€198.49
49
€196.07
99
€193.65
499
€181.55
999
€179.12
1999
€176.70
2999
€174.28
4999
€169.44
SKU:
UCT317
UCT317 Metric Cast Iron Take Up Unit Housing with 85mm Bore Insert
- Regular price
- €242.06 ex VAT
- Sale price
- €242,06
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 85mm |
| o | = | 42mm |
| g | = | 32mm |
| p | = | 152mm |
| q | = | 98mm |
| s | = | 53mm |
| b | = | 170mm |
| k | = | 32mm |
| e | = | 214mm |
| a | = | 240mm |
| w | = | 298mm |
| j | = | 102mm |
| l | = | 64mm |
| h | = | 183mm |
| B | = | 96mm |
| n | = | 40mm |
| Bearing no | = | UC317 |
| Housing no | = | T317 |
| Weight | = | 18.6 kg |
