SKU: UCT318

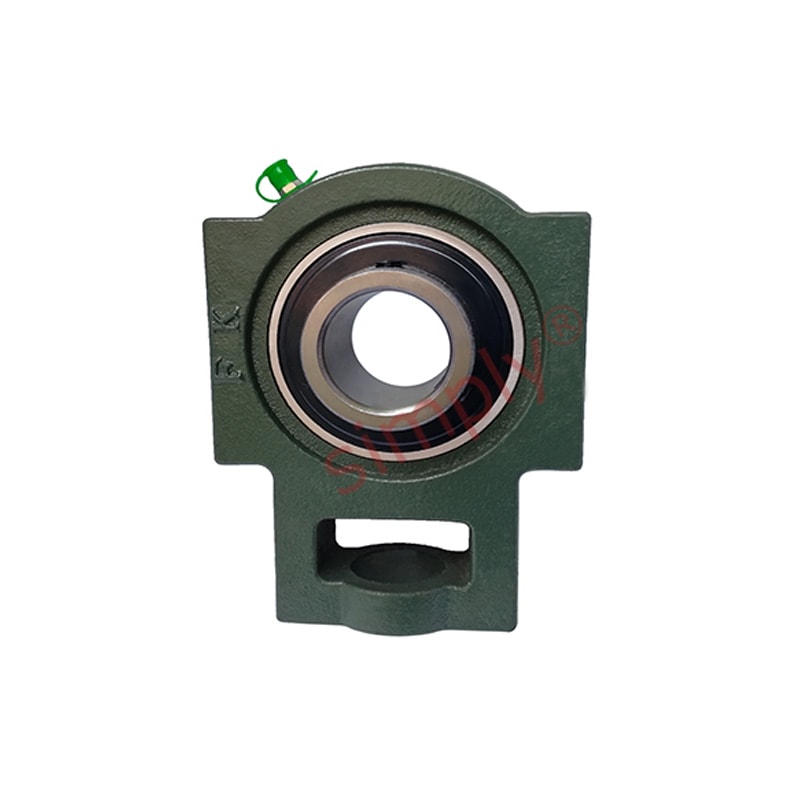

UCT318 Metric Cast Iron Take Up Unit Housing with 90mm Bore Insert
- Regular price
- €309.09 ex VAT
- Sale price
- €309,09
- Regular price
-
Not in stock
Quantity Price Breaks
3
€275.09
4
€259.64
9
€256.54
19
€253.45
49
€250.36
99
€247.27
499
€231.82
999
€228.73
1999
€225.64
2999
€222.54
4999
€216.36
SKU:
UCT318
UCT318 Metric Cast Iron Take Up Unit Housing with 90mm Bore Insert
- Regular price
- €309.09 ex VAT
- Sale price
- €309,09
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 90mm |
| o | = | 46mm |
| g | = | 32mm |
| p | = | 160mm |
| q | = | 106mm |
| s | = | 57mm |
| b | = | 175mm |
| k | = | 32mm |
| e | = | 228mm |
| a | = | 255mm |
| w | = | 312mm |
| j | = | 110mm |
| l | = | 66mm |
| h | = | 192mm |
| B | = | 96mm |
| n | = | 40mm |
| Bearing no | = | UC318 |
| Housing no | = | T318 |
| Weight | = | 21 kg |
