SKU: UCT319

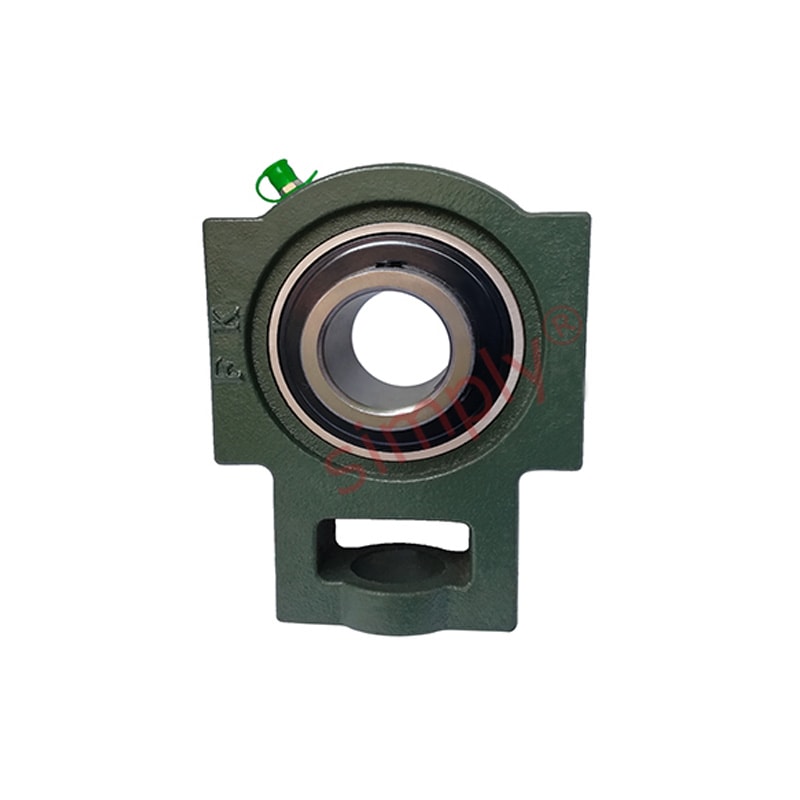

UCT319 Metric Cast Iron Take Up Unit Housing with 95mm Bore Insert
- Regular price
- €426.70 ex VAT
- Sale price
- €426,70
- Regular price
-
ex VAT
Not in stock
Quantity Price Breaks
3
€379.76
4
€358.43
9
€354.16
19
€349.89
49
€345.63
99
€341.36
499
€320.03
999
€315.76
1999
€311.49
2999
€307.22
4999
€298.69
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 95mm |
| o | = | 46mm |
| g | = | 33mm |
| p | = | 165mm |
| q | = | 106mm |
| s | = | 57mm |
| b | = | 180mm |
| k | = | 35mm |
| e | = | 240mm |
| a | = | 270mm |
| w | = | 322mm |
| j | = | 110mm |
| l | = | 72mm |
| h | = | 197mm |
| B | = | 103mm |
| n | = | 41mm |
| Bearing no | = | UC319 |
| Housing no | = | T319 |
| Weight | = | 24.6 kg |
