SKU: UCT322

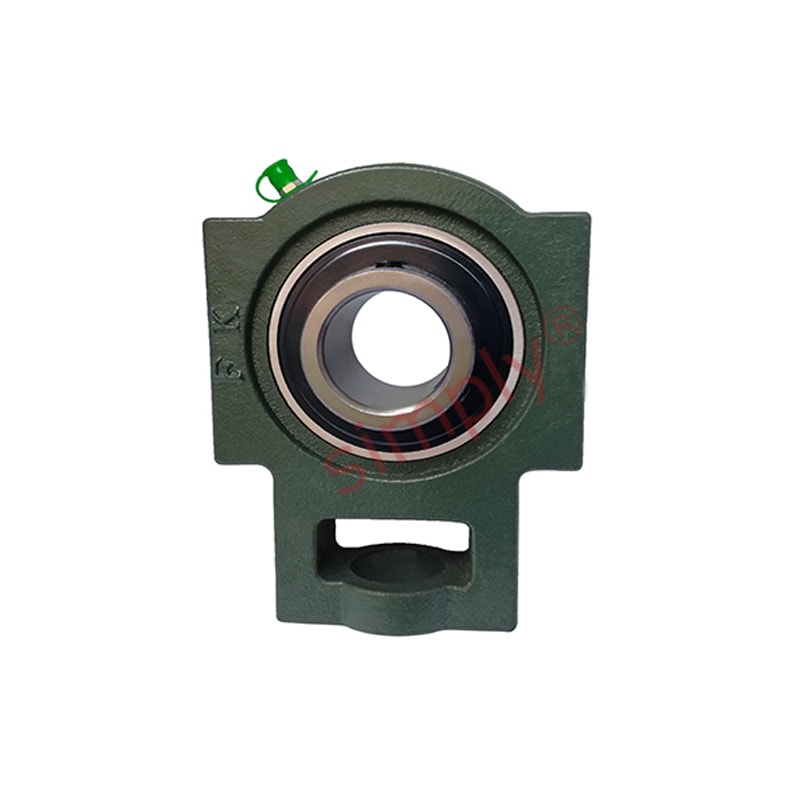

UCT322 Metric Cast Iron Take Up Unit Housing with 110mm Bore Insert
- Regular price
- €533.13 ex VAT
- Sale price
- €533,13
- Regular price
-
Not in stock
Quantity Price Breaks
3
€474.49
4
€447.83
9
€442.50
19
€437.17
49
€431.84
99
€426.50
499
€399.85
999
€394.52
1999
€389.18
2999
€383.85
4999
€373.19
SKU:
UCT322
UCT322 Metric Cast Iron Take Up Unit Housing with 110mm Bore Insert
- Regular price
- €533.13 ex VAT
- Sale price
- €533,13
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing

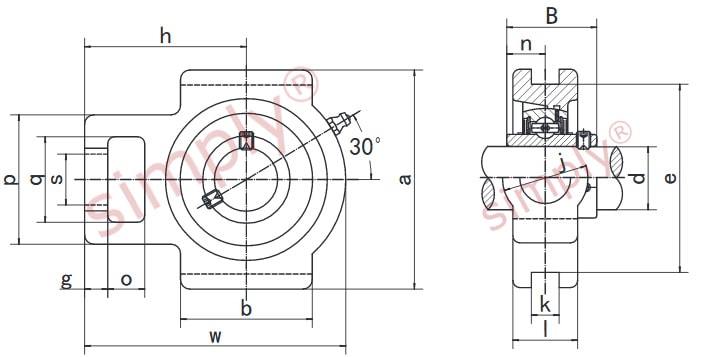

Technical
| d | = | 110mm |
| o | = | 52mm |
| g | = | 38mm |
| p | = | 185mm |
| q | = | 125mm |
| s | = | 65mm |
| b | = | 215mm |
| k | = | 38mm |
| e | = | 285mm |
| a | = | 320mm |
| w | = | 385mm |
| j | = | 130mm |
| l | = | 80mm |
| h | = | 235mm |
| B | = | 117mm |
| n | = | 46mm |
| Bearing no | = | UC322 |
| Housing no | = | T322 |
| Weight | = | 39.4 kg |
