SKU: UCT324

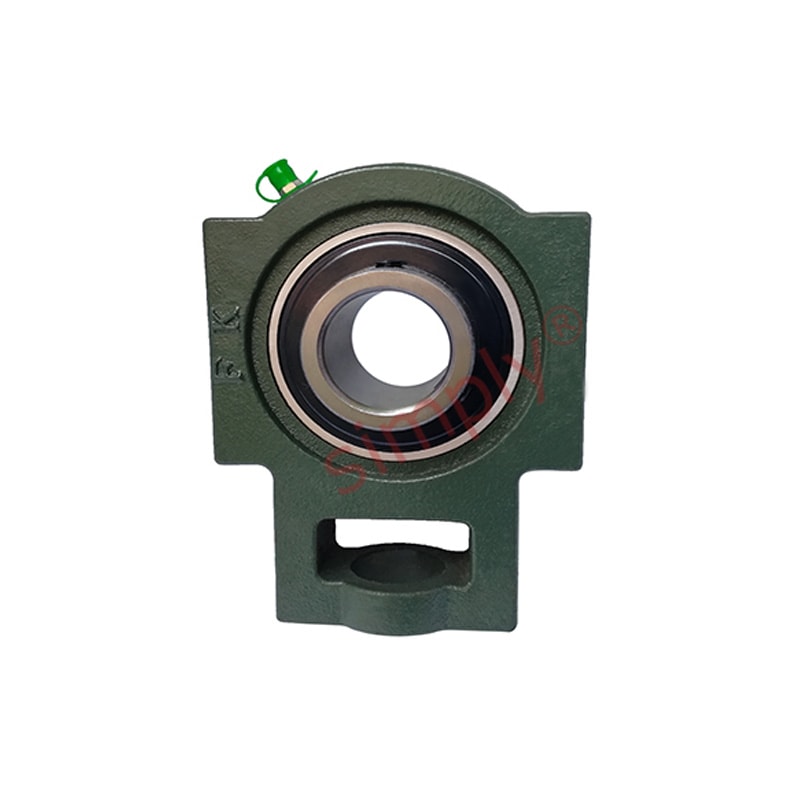

UCT324 Metric Cast Iron Take Up Unit Housing with 120mm Bore Insert
- Regular price
- €635.00 ex VAT
- Sale price
- €635,00
- Regular price
-
Not in stock
Quantity Price Breaks
3
€565.15
4
€533.40
9
€527.05
19
€520.70
49
€514.35
99
€508.00
499
€476.25
999
€469.90
1999
€463.55
2999
€457.20
4999
€444.50
SKU:
UCT324
UCT324 Metric Cast Iron Take Up Unit Housing with 120mm Bore Insert
- Regular price
- €635.00 ex VAT
- Sale price
- €635,00
- Regular price
-
Description
UCT300 Series Heavy Duty Take Up Units: These heavy-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 120mm |
| o | = | 60mm |
| g | = | 42mm |
| p | = | 210mm |
| q | = | 140mm |
| s | = | 70mm |
| b | = | 230mm |
| k | = | 45mm |
| e | = | 320mm |
| a | = | 355mm |
| w | = | 432mm |
| j | = | 140mm |
| l | = | 90mm |
| h | = | 267mm |
| B | = | 126mm |
| n | = | 51mm |
| Bearing no | = | UC324 |
| Housing no | = | T324 |
| Weight | = | 54.2 kg |
