SKU: UCTX06-19

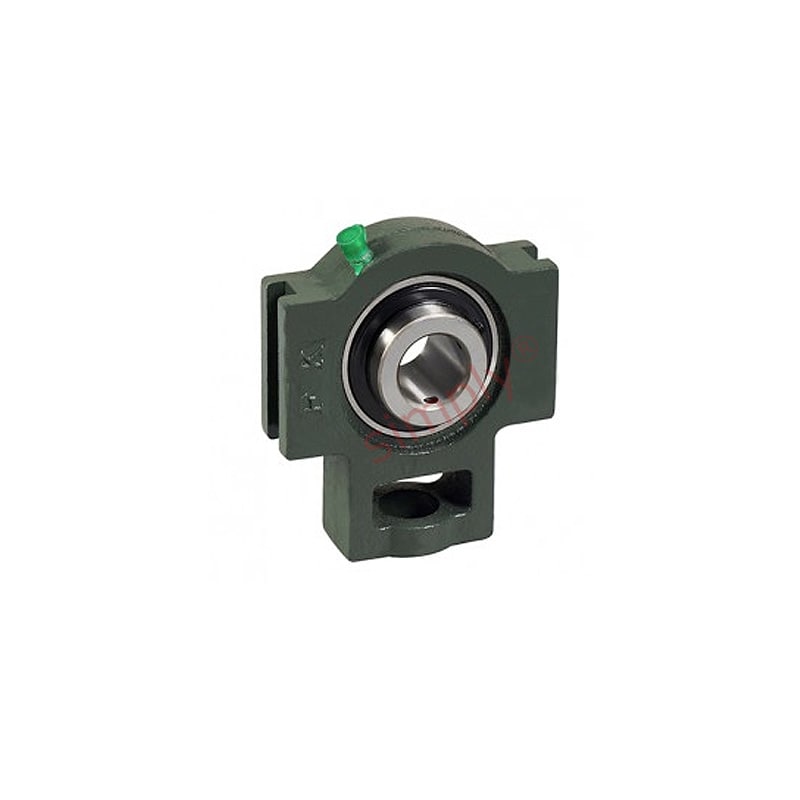

UCTX06-19 Imperial Cast Iron Take Up Unit Housing with 1-3/16 inch Bore Insert
- Regular price
- €40.04 ex VAT
- Sale price
- €40,04
- Regular price
-
Not in stock
Quantity Price Breaks
3
€35.64
4
€33.63
9
€33.23
19
€32.83
49
€32.43
99
€32.03
499
€30.03
999
€29.63
1999
€29.23
2999
€28.83
4999
€28.03
SKU:
UCTX06-19
UCTX06-19 Imperial Cast Iron Take Up Unit Housing with 1-3/16 inch Bore Insert
- Regular price
- €40.04 ex VAT
- Sale price
- €40,04
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| d | = | 1-3/16 inch |
| o | = | 5/8 inch |
| g | = | 19/32 inch |
| p | = | 2-33/64 inch |
| q | = | 1-29/64 inch |
| s | = | 55/64 inch |
| b | = | 2-33/64 inch |
| k | = | 0.472 inch |
| e | = | 3-1/2 inch |
| a | = | 4-1/64 inch |
| w | = | 5-5/64 inch |
| j | = | 1-3/16 inch |
| l | = | 1-29/64 inch |
| h | = | 3-5/64 inch |
| B | = | 1.689 inch |
| n | = | 0.689 inch |
| Bearing no | = | UCX06-19 |
| Housing no | = | TX06 |
| Weight | = | 1.6 kg |
