SKU: UCTX16D1-NTN

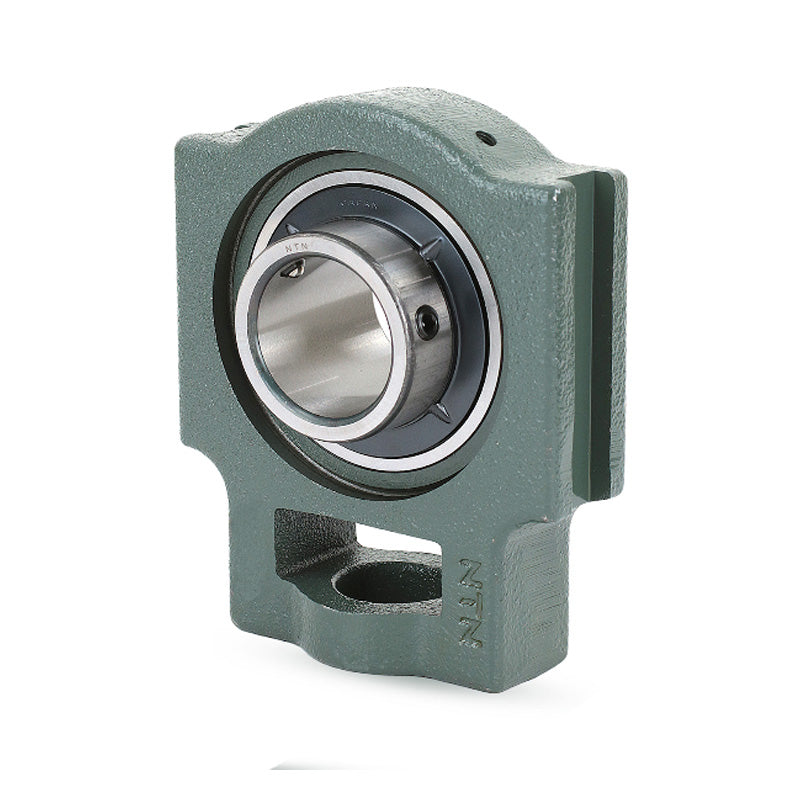

NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €247.60 ex VAT
- Sale price
- €247,60
- Regular price
-
Not in stock
Quantity Price Breaks
3
€220.36
4
€207.98
9
€205.51
19
€203.03
49
€200.56
99
€198.08
499
€185.70
999
€183.22
1999
€180.75
2999
€178.27
4999
€173.32
SKU:
UCTX16D1-NTN
NTN UCTX16D1 Metric Cast Iron Take Up Unit with 80mm Bore Bearing Unit - Allow 2-3 Days
- Regular price
- €247.60 ex VAT
- Sale price
- €247,60
- Regular price
-
Description
UCTX Series Medium Duty Take Up Units: These medium-duty bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 80mm |
| N< | = | sub> |
| 1< | = | /sub> |
| = | 38mm | |
| L< | = | sub> |
| 2< | = | /sub> |
| = | 30mm | |
| H< | = | sub> |
| 2< | = | /sub> |
| = | 124mm | |
| N< | = | sub> |
| 2< | = | /sub> |
| = | 73mm | |
| N | = | 48mm |
| L< | = | sub> |
| 3< | = | /sub> |
| = | 157mm | |
| A< | = | sub> |
| 1< | = | /sub> |
| = | 28mm | |
| H< | = | sub> |
| 1< | = | /sub> |
| = | 173mm | |
| H | = | 198mm |
| L | = | 260mm |
| A< | = | sub> |
| 2< | = | /sub> |
| = | 54mm | |
| A | = | 73mm |
| r | = | 98mm |
| L< | = | sub> |
| 1< | = | /sub> |
| = | 162mm | |
| B | = | 85.7mm |
| S | = | 34.1mm |
| --- | = | Load rating |
| Dynamic load C< | = | sub> |
| r< | = | /sub> |
| = | 92 kN | |
| Static load C< | = | sub> |
| 0r< | = | /sub> |
| = | 64 kN | |
| Fatigue load limit C< | = | sub> |
| u< | = | /sub> |
| = | 4.6 kN | |
| --- | = | Unit information |
| Mass | = | 11 kg |
