SKU: UCW.203

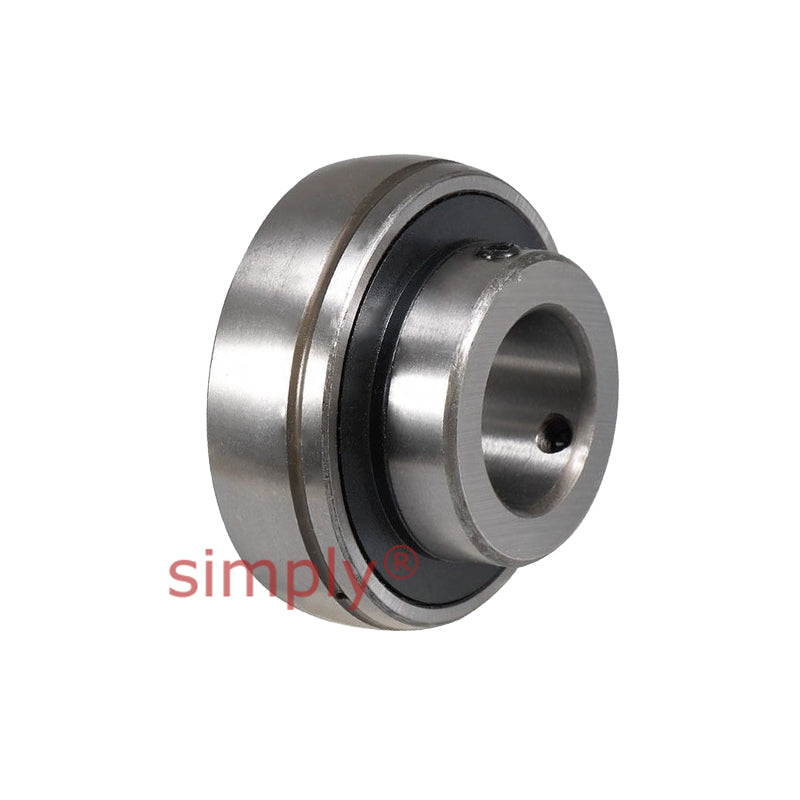

UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
- Regular price
- €10.37 ex VAT
- Sale price
- €10,37
- Regular price
-
Not in stock
Quantity Price Breaks
3
€9.23
4
€8.71
9
€8.61
19
€8.50
49
€8.40
99
€8.30
499
€7.78
999
€7.67
1999
€7.57
2999
€7.47
4999
€7.26
SKU:
UCW.203
UCW203 Metric Bearing Insert with 17mm Bore 40mm Outside Dia
- Regular price
- €10.37 ex VAT
- Sale price
- €10,37
- Regular price
-
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Technical
| d | = | 17mm |
| D | = | 40mm |
| Bi | = | 27.4mm |
| Be | = | 14mm |
| n | = | 11.5mm |
| m | = | 15.9mm |
| G | = | 4.2mm |
| Grub screw | = | M5x0.8 |
| Weight | = | 0.1 kg |
| Dynamic load | = | 973 kgf |
| Static load | = | 487 kgf |
