SKU: UCX.05-16

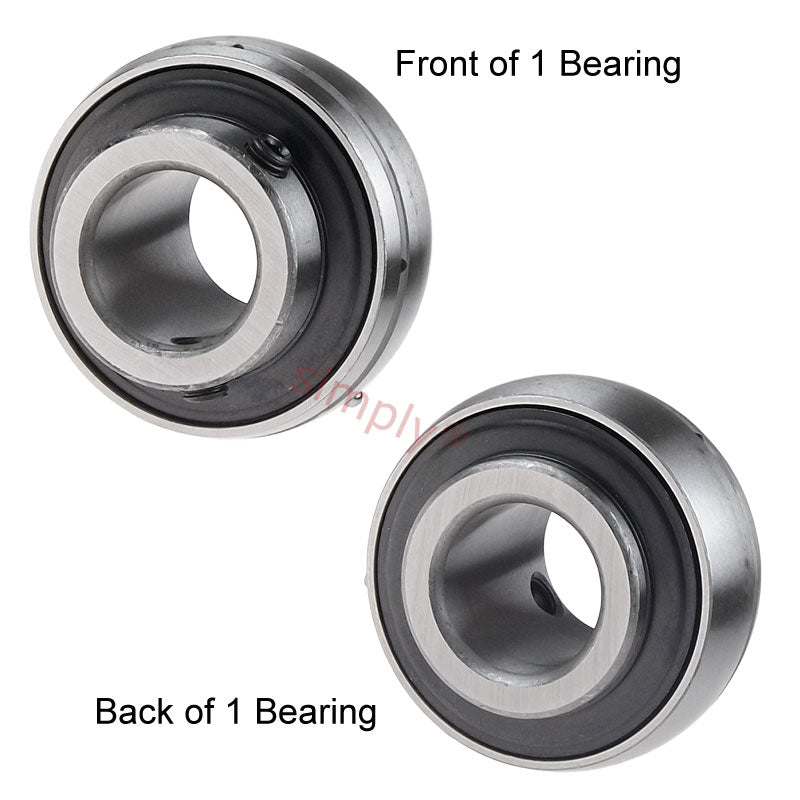

UCX05-16 Imperial Bearing Insert with 1 inch Bore 62mm Outside Dia
- Regular price
- €11.52 ex VAT
- Sale price
- €11,52
- Regular price
-
In stock
Quantity Price Breaks
3
€10.25
4
€9.68
9
€9.56
19
€9.45
49
€9.33
99
€9.22
499
€8.64
999
€8.52
1999
€8.41
2999
€8.29
4999
€8.06
SKU:
UCX.05-16
UCX05-16 Imperial Bearing Insert with 1 inch Bore 62mm Outside Dia
- Regular price
- €11.52 ex VAT
- Sale price
- €11,52
- Regular price
-
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 1 inch |
| D | = | 62mm |
| Bi | = | 38.1mm |
| Be | = | 19mm |
| n | = | 15.9mm |
| m | = | 22.2mm |
| G | = | 6mm |
| Grub screw | = | 1/4-28-unf |
| Weight | = | 0.38 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Rec max speed | = | 5300 rpm |
