SKU: UCX.08

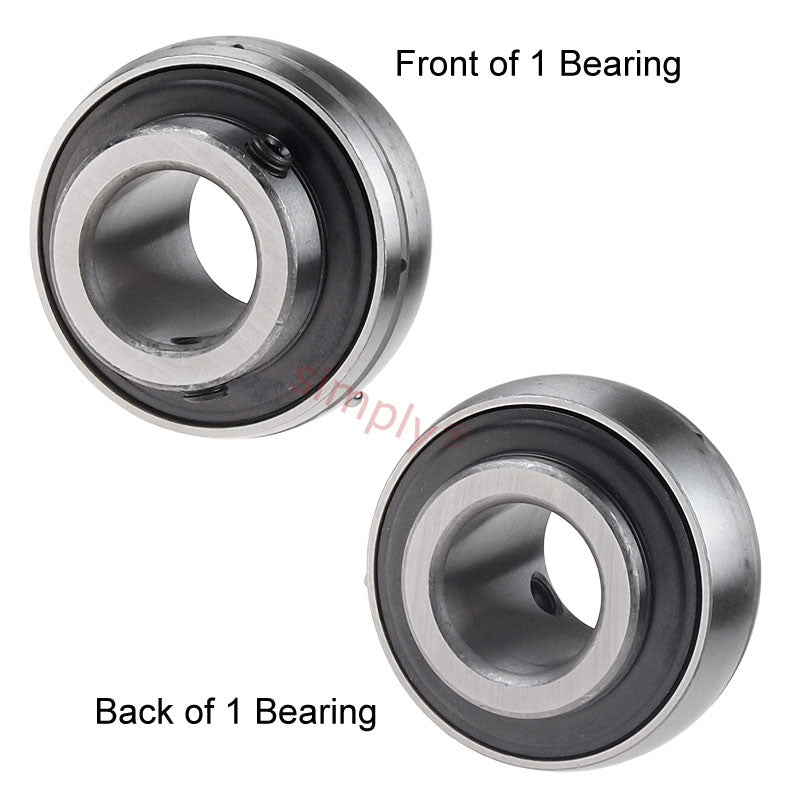

UCX08 Metric Bearing Insert with 40mm Bore 85mm Outside Dia
- Regular price
- €21.72 ex VAT
- Sale price
- €21,72
- Regular price
-
In stock
Quantity Price Breaks
3
€19.33
4
€18.24
9
€18.03
19
€17.81
49
€17.59
99
€17.38
499
€16.29
999
€16.07
1999
€15.86
2999
€15.64
4999
€15.20
SKU:
UCX.08
UCX08 Metric Bearing Insert with 40mm Bore 85mm Outside Dia
- Regular price
- €21.72 ex VAT
- Sale price
- €21,72
- Regular price
-
Description
|
UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing |
Technical
| d | = | 40mm |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 8mm |
| Grub screw | = | M8x1 |
| Weight | = | 0.87 kg |
| Dynamic load | = | 2650 kgf |
| Static load | = | 1910 kgf |
| Rec max speed | = | 3700 rpm |
