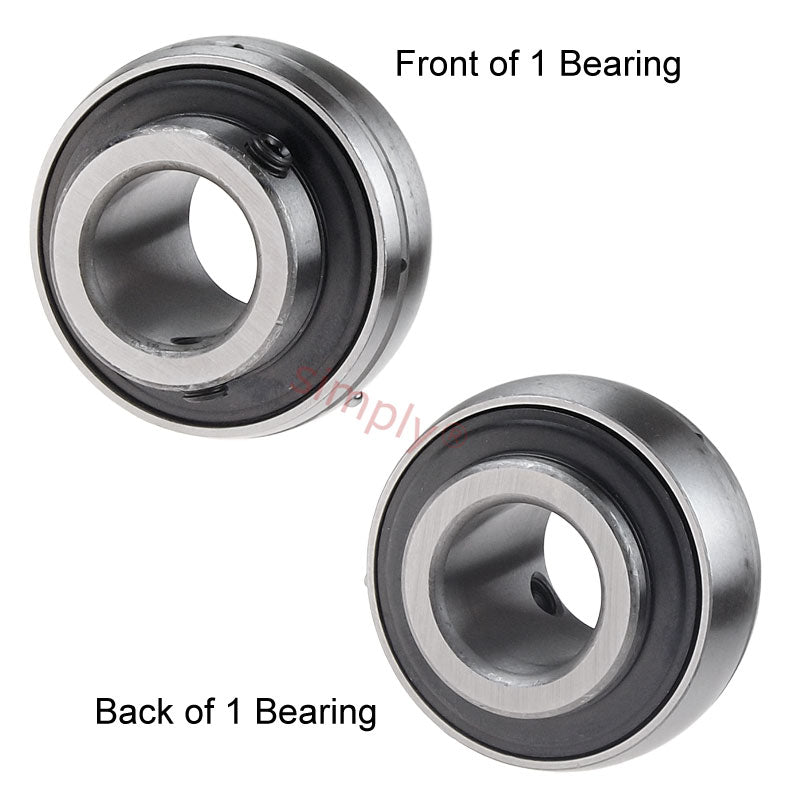

UCX10-31 Imperial Bearing Insert with 1-15/16 inch Bore 100mm Outside Dia

SKU: UCX.10-31

UCX10-31 Imperial Bearing Insert with 1-15/16 inch Bore 100mm Outside Dia

€31.91 ex VAT
€31,91
ex VAT
Equivalent to: 1055-1-15/16G
In stock

Quantity Price Breaks

3 €28.40
4 €26.80
9 €26.49
19 €26.17
49 €25.85
99 €25.53
499 €23.93
999 €23.61
1999 €23.29
2999 €22.98
4999 €22.34
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
UCX10-31 Imperial Bearing Insert with 1-15/16 inch Bore 100mm Outside Dia
SKU: UCX.10-31

UCX10-31 Imperial Bearing Insert with 1-15/16 inch Bore 100mm Outside Dia

€31.91 ex VAT
€31,91
ex VAT

Description

UCX or MP Series: Bearing insert with 2 grub screws to allow tightening against the shaft once fitted. These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required
Benefits: Cost effective replacement insert, re-lubricatable, grub screw fixing

Technical

d = 1-15/16 inch
D = 100mm
Bi = 55.6mm
Be = 25mm
n = 22.2mm
m = 33.4mm
G = 10mm
Grub screw = 3/8-24-unf
Weight = 1.32 kg
Dynamic load = 3400 kgf
Static load = 2550 kgf
Rec max speed = 3100 rpm
