SKU: UCX.15-48.TS.CHAL

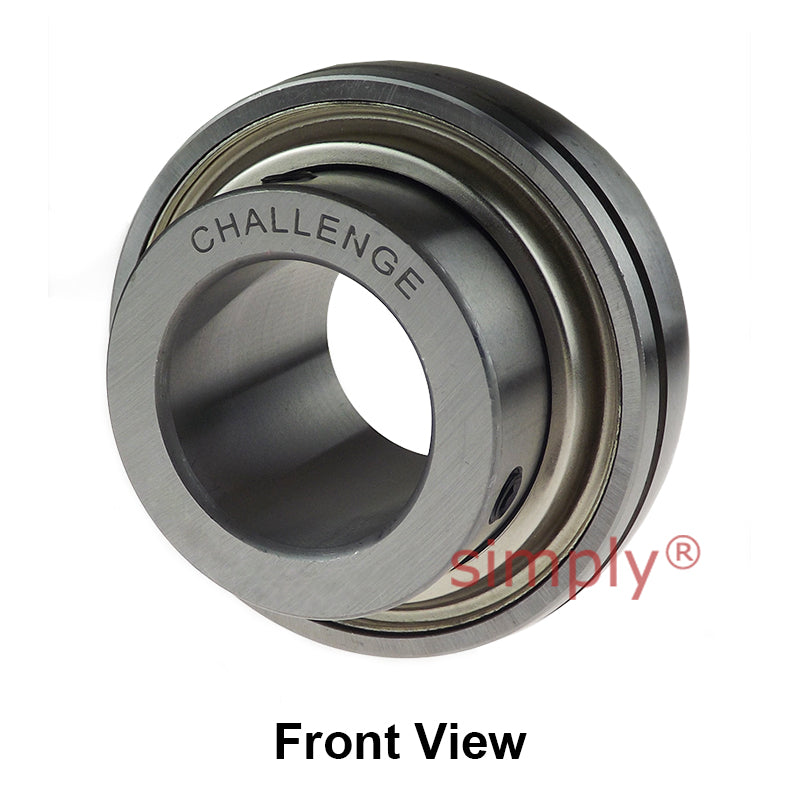

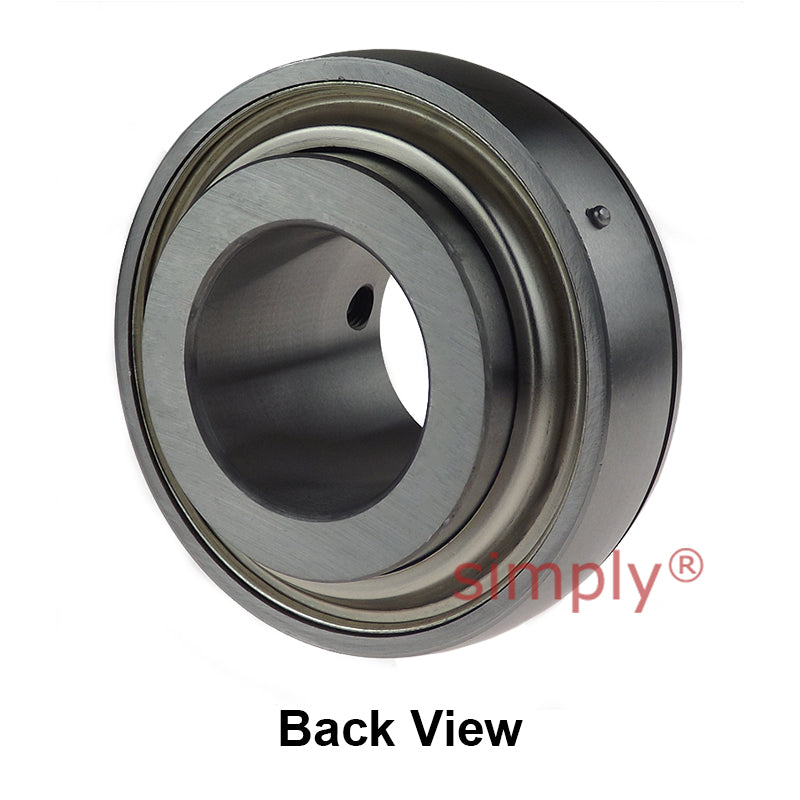

Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €207.68 ex VAT
- Sale price
- €207,68
- Regular price
-
In stock
Quantity Price Breaks
3
€184.84
5
€174.45
9
€172.37
19
€170.30
49
€168.22
74
€166.14
99
€155.76
199
€153.68
249
€151.61
499
€149.53
999
€145.38
SKU:
UCX.15-48.TS.CHAL
Challenge UCX15-48 Imperial Insert with Grub Screws with 3 inch Bore 140mm Outside Dia and Triple Lip Seal Ideal for Agricultural and Outdoor Use
- Regular price
- €207.68 ex VAT
- Sale price
- €207,68
- Regular price
-
Description
UCX Insert with Grub Screws: These normal-duty bearing units are fitted with a triple lip seal. These bearings are perfect for agricultural applications where the bearings are exposed to contamination. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. Also available as a complete housing assembly.
Benefits: High tolerance to harsh environments, cost effective bearing, re-lubricatable, grub screw fixing
Technical
| Shaft Diameter d | = | 3 inch |
| Outside Diameter D | = | 140mm |
| Overall Width Bi | = | 82.6mm |
| Inner Race Width Be | = | 33mm |
| Back of Bearing to Centre Line n | = | 33.3mm |
| Front of Bearing to Centre Line m | = | 49.3mm |
| Dimension G | = | 12mm |
| Grub Screws x 2 | = | 7/16 - 24UNF inch |
| Load Rating (Dynamic) | = | 5700kg |
| Load Rating (Static) | = | 4550kg |
| Max Speed | = | 1200 rev/min |
| Working Temperature | = | -30& |
| deg | = | C to +120& |
| deg | = | C |
