SKU: UKT213/HA2313

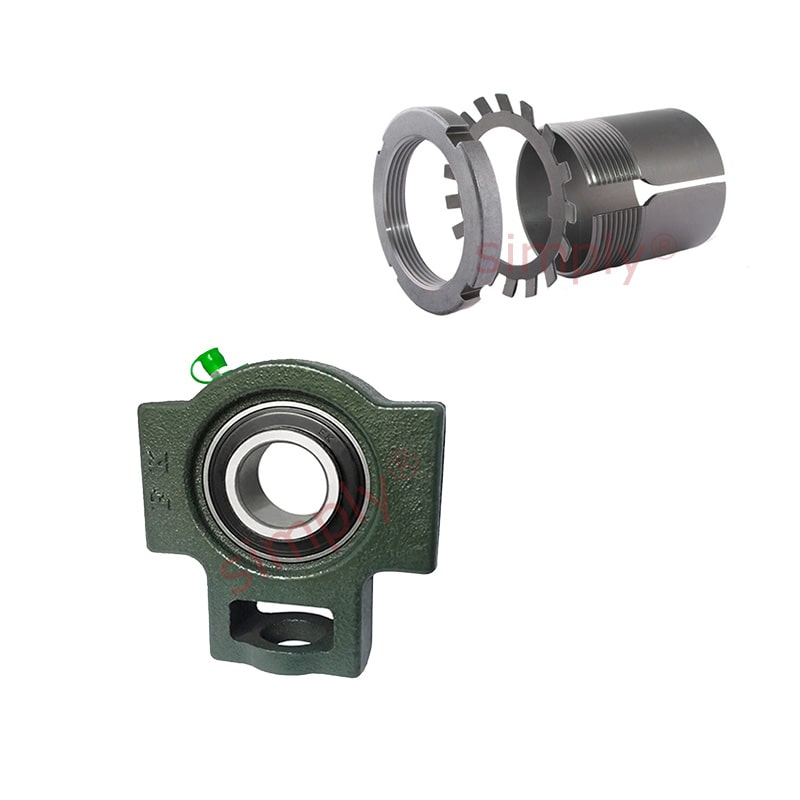

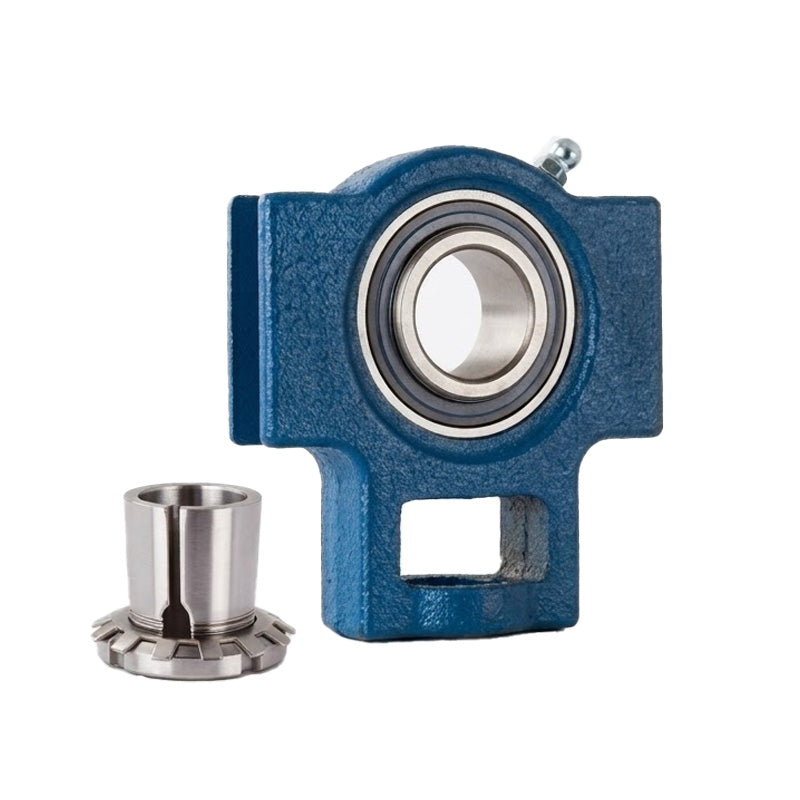

UKT213/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
- Regular price
- €137.15 ex VAT
- Sale price
- €137,15
- Regular price
-
Not in stock
Quantity Price Breaks
3
€122.06
4
€115.21
9
€113.83
19
€112.46
49
€111.09
99
€109.72
499
€102.86
999
€101.49
1999
€100.12
2999
€98.75
4999
€96.01
SKU:
UKT213/HA2313
UKT213/HA2313 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-3/16 inch Shaft
- Regular price
- €137.15 ex VAT
- Sale price
- €137,15
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| d | = | 2-3/16 inch |
| o | = | 1-17/64 inch |
| g | = | 53/64 inch |
| p | = | 4-3/8 inch |
| q | = | 2-3/4 inch |
| s | = | 1-39/64 inch |
| b | = | 4-49/64 inch |
| k | = | 1-1/32 inch |
| e | = | 5-15/16 inch |
| a | = | 6-37/64 inch |
| w | = | 8-13/16 inch |
| j | = | 2-3/4 inch |
| l | = | 1-23/32 inch |
| h | = | 5-25/64 inch |
| t | = | 3-1/2 inch |
| B1 | = | 2.559 inch |
| Bearing no | = | UK213 |
| HA2313 | = | Housing no |
| T213 | = | Weight |
| 6.56 kg | = | N/A |
