SKU: UKT213HN-SNR

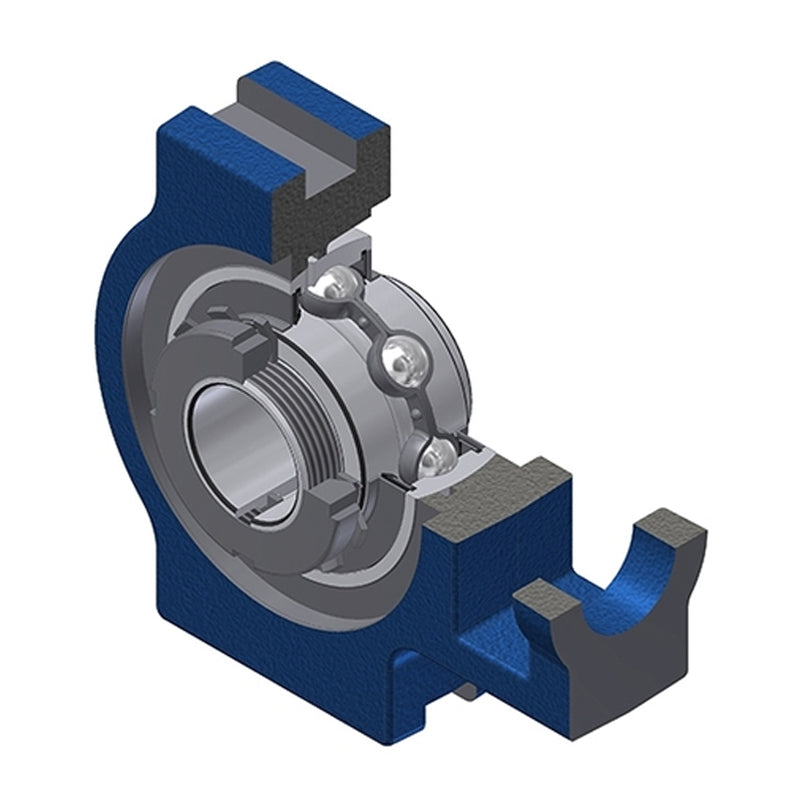

SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
- Regular price
- €132.62 ex VAT
- Sale price
- €132,62
- Regular price
-
Not in stock
Quantity Price Breaks
3
€118.03
4
€111.40
9
€110.07
19
€108.75
49
€107.42
99
€106.10
499
€99.47
999
€98.14
1999
€96.81
2999
€95.49
4999
€92.83
SKU:
UKT213HN-SNR
SNR UKT213HN Metric Cast Iron Take Up Unit Insert and Adaptor Sleeve Fits 60mm Shaft - Allow 2-3 Days
- Regular price
- €132.62 ex VAT
- Sale price
- €132,62
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| --- | = | Dimensions |
| Shaft diameter d | = | 60mm |
| A | = | 70mm |
| A1 | = | 26mm |
| A2 | = | 44mm |
| B1 | = | 65mm |
| d1 | = | 85mm |
| H | = | 167mm |
| H1 | = | 151mm |
| H2 | = | 111mm |
| L | = | 224mm |
| L1 | = | 137mm |
| L2 | = | 21mm |
| L3 | = | 121mm |
| N | = | 41mm |
| N1 | = | 32mm |
| N2 | = | 70mm |
| s1 | = | 32mm |
| G | = | M6x1 |
| --- | = | Load rating |
| Dynamic load C | = | 57.2 kN |
| Static load C0 | = | 40 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Adapter sleeve | = | H2313 |
| Mass | = | 6.65 kg |
