SKU: UKT217/HA2317

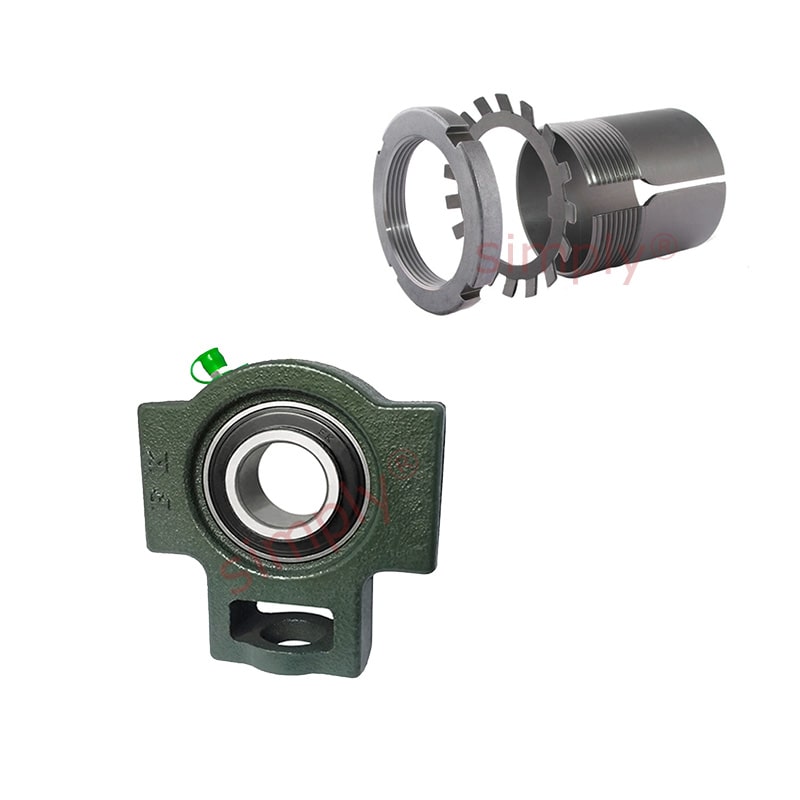

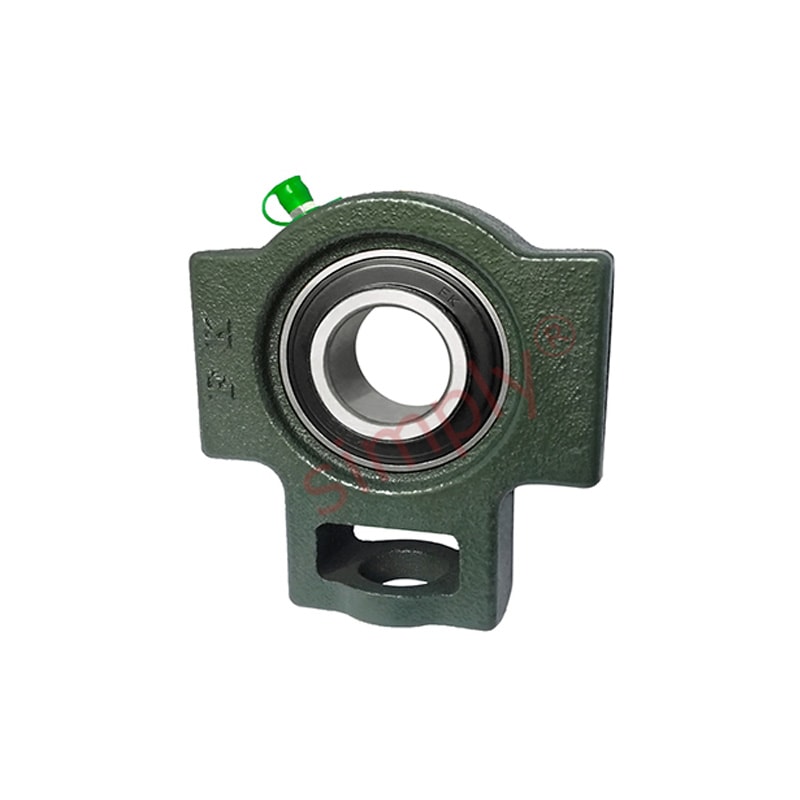

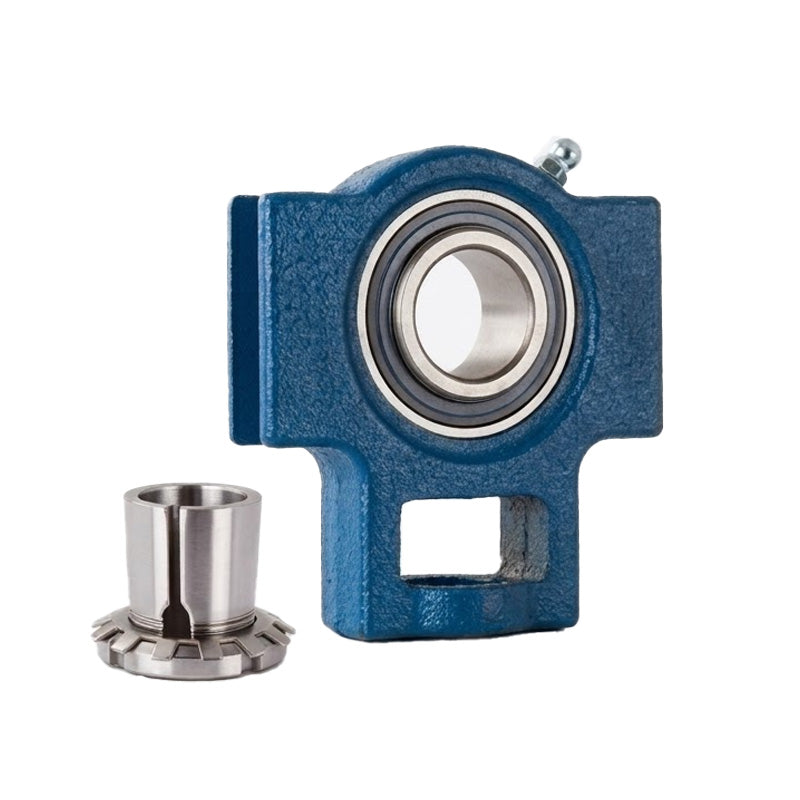

UKT217/HA2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft
- Regular price
- €339.41 ex VAT
- Sale price
- €339,41
- Regular price
-
Not in stock
Quantity Price Breaks
3
€302.07
4
€285.10
9
€281.71
19
€278.32
49
€274.92
99
€271.53
499
€254.56
999
€251.16
1999
€247.77
2999
€244.38
4999
€237.59
SKU:
UKT217/HA2317
UKT217/HA2317 Imperial Cast Iron Take Up Unit Housing Insert and Adaptor Sleeve Fits 2-15/16 inch Shaft
- Regular price
- €339.41 ex VAT
- Sale price
- €339,41
- Regular price
-
Description
UKT200 Series Normal Duty Take Up Units with Adaptor Sleeve Mounted: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, with adaptor
Technical
| d | = | 2-15/16 inch |
| o | = | 1-1/2 inch |
| g | = | 1-9/64 inch |
| p | = | 4-7/8 inch |
| q | = | 2-7/8 inch |
| s | = | 1-57/64 inch |
| b | = | 6-3/16 inch |
| k | = | 1-3/16 inch |
| e | = | 6-13/16 inch |
| a | = | 7-51/64 inch |
| w | = | 10-15/64 inch |
| j | = | 2-7/8 inch |
| l | = | 2-1/8 inch |
| h | = | 6-3/8 inch |
| t | = | 4-29/64 inch |
| B1 | = | 3.288 inch |
| Bearing no | = | UK217 |
| HA2317 | = | Housing no |
| T217 | = | Weight |
| 11.38 kg | = | N/A |
