SKU: USEHE205-SNR

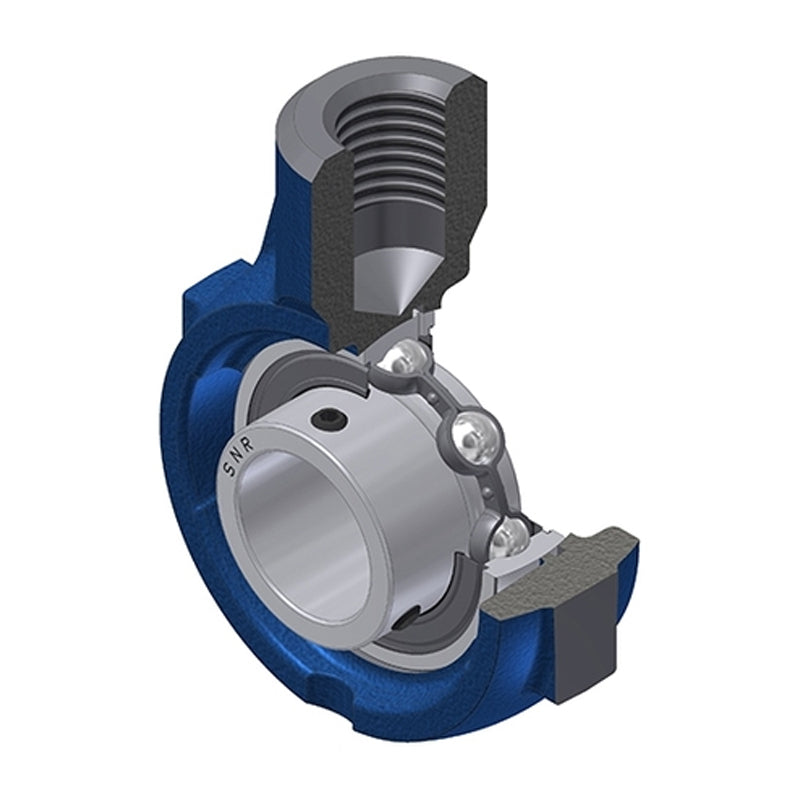

SNR USEHE205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
In stock
Quantity Price Breaks
3
€23.71
4
€22.38
9
€22.11
19
€21.84
49
€21.58
99
€21.31
499
€19.98
999
€19.71
1999
€19.45
2999
€19.18
4999
€18.65
SKU:
USEHE205-SNR
SNR USEHE205 Metric Cast Iron Hanger Bearing Unit with 25mm Bore Insert
- Regular price
- €26.64 ex VAT
- Sale price
- €26,64
- Regular price
-
Description
FND92FY7ZI
Technical
| --- | = | Dimensions |
| Shaft diameter | = | 25mm |
| A | = | 28mm |
| A2 | = | 35mm |
| B | = | 27mm |
| E | = | 22mm |
| H | = | 70mm |
| L | = | 99mm |
| L1 | = | 64mm |
| L3 | = | 38mm |
| S | = | 7.5mm |
| G | = | R1/8& |
| Prime | = | |
| G1 | = | M20 |
| --- | = | Load rating |
| Dynamic load C | = | 14 kN |
| Static load C0 | = | 7.88 kN |
| --- | = | Unit information |
| Operating temperature min. | = | -20& |
| deg | = | C |
| Operating temperature max. | = | 100& |
| deg | = | C |
| Mass | = | 0.67 kg |
